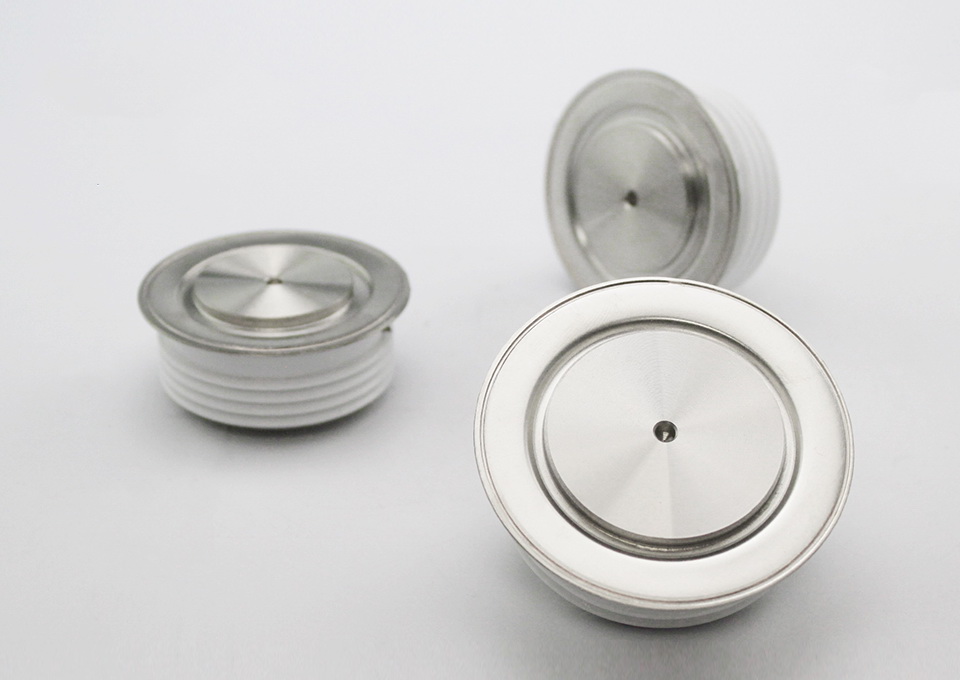

Rectifier Diodes (Capsule Version)

Features

All diffused structure/technic

Hermetic ceramic-metal disc/capsule structure

High Surge Current Capacity

Conform to GB4939-1985

Bifacial/Double face cooling

Typical Application

Larger Power Converter

Welding Device

Motor Control & Drive

Charging Device

Electroplating/Galvanizing

Industry and Traction Usage Large Power Transmission

Details

Type	V_RRM	I_F(AV)		I_FSM		I_RRM	V_FM/I_FM	V_FO	rF	R_th(j-hs)	T_jm	M²	Outline
				10 ms		25 °C	150 °C
	V	A	°C	KA	KA²s	mA	V/A	V	mΩ	°C/W	°C	KN
ZP200A-B	200-1000	200	130	2.8	40	16	1.8/600	0.73	0.68	0.090	150	3.3-5.5	C2/C7
ZP300A-B	200-1000	300	126	4.2	90	30	1.8/900	0.98	0.31	0.065	150	5.3-12	C2/C8
ZP400A-B	200-1000	400	122	5.6	160	30	1.8/1200	0.95	0.31	0.055	150	5.3-10	C3/C8
ZP500A-B	200-1000	500	120	7	250	40	1.8/1500	1.06	0.31	0.040	150	10-20	C3/C4/C9/C17
ZP600A-B	200-1000	600	122	8.4	350	40	1.8/1800	0.97	0.27	0.033	150	10-20	C17
ZP800A-B	200-1000	800	116	11	600	40	2.0/2400	0.81	0.23	0.033	150	10-20	C17
ZP1000A-B	200-1000	1000	112	14	980	50	2.0/3000	0.86	0.165	0.030	150	15-20	C18
ZP1200A-B	200-1000	1200	106	17	1500	60	2.0/3000	0.82	0.132	0.030	150	18-25	C19
ZP1600A-B	200-1000	1600	102	23	2600	80	2.0/3000	0.80	0.14	0.022	150	19-26	C20
ZP200A-C	1100-2000	200	129	2.8	40	16	1.8/600	0.70	0.86	0.090	150	3.3-5.5	C7/C2
ZP300A-C	1100-2000	300	123	4.2	90	30	1.8/900	1.08	0.35	0.065	150	5.3-12	C8/C3
ZP400A-C	1100-2000	400	119	5.6	160	30	1.8/1200	1.06	0.35	0.055	150	5.3-10	C8/C4
ZP500A-C	1100-2000	500	120	8.4	350	40	1.8/1500	1.05	0.30	0.033	150	10-20	C17/C4
ZP600A-C	1100-2000	600	120	8.4	350	40	1.8/1800	1.05	0.30	0.033	150	10-20	C17/C4
ZP800A-C	1100-2000	800	112	11	600	40	2.0/2400	0.85	0.29	0.033	150	10-20	C18/C5
ZP1000A-C	1100-2000	1000	108	14	980	50	2.0/3000	0.90	0.204	0.030	150	15-20	C19/C6
ZP1200A-C	1100-2000	1200	114	17	1500	80	2.0/3000	0.89	0.15	0.022	150	19-26	C20
ZP2000A-C	1100-2000	2000	101	28	3900	120	2.0/4000	0.273	0.10	0.020	150	21-30	C21
ZP2500A-C	1100-2000	2500	90	35	6100	120	2.0/5000	0.725	0.11	0.016	150	27-34	C23
ZP3100A-C	1100-2000	3100	104	30	4500	60	1.4/3000	0.85	0.10	0.016	150	30-40	C23
ZP3500A-C	1100-2000	3500	87	44	9700	200	2.0/5000	0.93	0.08	0.011	150	35-47	C23/C24/C25
ZP4000A-C	1100-2000	4000	94	50	12500	200	2.0/5000	0.76	0.08	0.009	150	70-85	C25/C26
ZP1000A-D	2100-3000	1000	120	14	980	80	2.0/3000	0.82	0.22	0.022	150	19-26	C20
ZP800A-E	3100-3800	800	123	11	600	80	2.0/2400	0.98	0.26	0.022	150	19-26	C20
ZP2100A-E	3100-3800	2100	94	30	4500	60	1.63/3000	0.88	0.150	0.016	150	30-40	C24
ZP2500A-E	3100-3800	2500	100	35	6100	200	2.0/5000	0.95	0.138	0.011	150	35-47	C24
ZP6300A-A	200-400	6300	56	55	15100	50	1.25/5000	0.69	0.042	0.0135	170	19-26	C25/C26/C27
ZP5000A-B	200-1000	5000	63	58	16800	100	1.20/5000	0.63	0.058	0.016	170	27-34	C25/C26/C27
ZP6400A-B	200-1000	6400	88	60	18000	100	1.25/5000	0.70	0.030	0.011	150	35-47	C25/C26/C27
