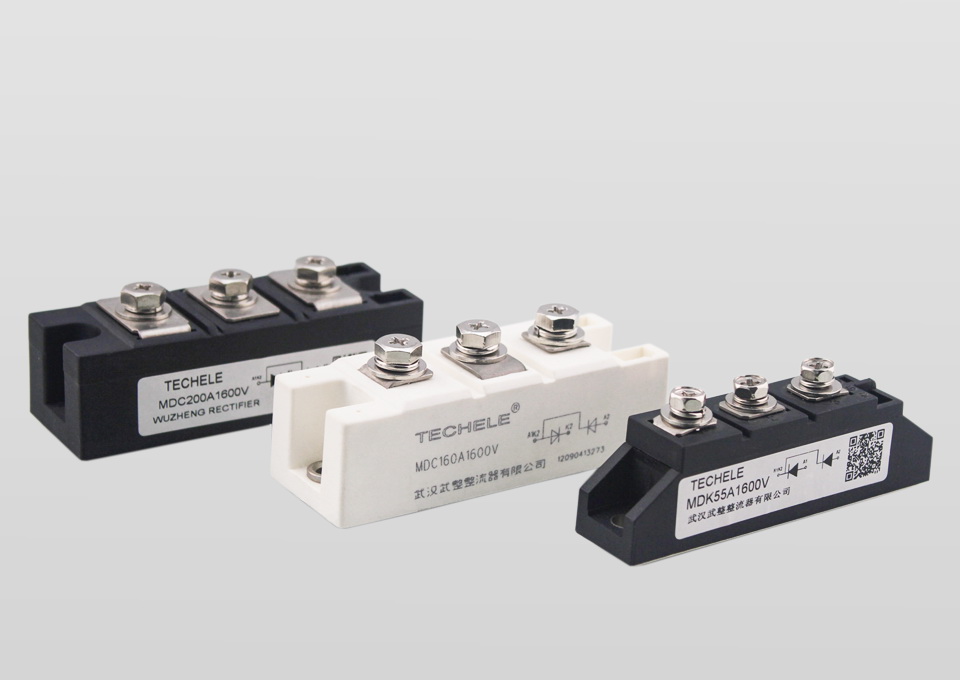

Diode Modules
Features
Electrically-isolated chip and baseboard AC2500V
Sealing package according to international standard
Full crimping structure, sensitive to temperature and power cycle duty
Modules under 350A with compulsive wind-cooling. Modules under 400A either with wind-cooling or water-cooling
Convenient installation, use and maintenance
Compact and lightweight
Welding technique under the protection of vacuum and hydrogen gas
Typical Applications
DC power supply for instrument and equipment
AC/DC motor controls
Various rectifying power supplies
Soft start
Welder
Converter
Battery charge and discharge
|
Model |
IF(AV) |
VRRM |
ITMVTM |
IRRM |
IF（RMS） |
Tjm |
Viso |
Outline |
|
|
A |
V |
V |
A |
mA |
A/µs |
℃ |
V（AC） |
||
|
25 |
400-2600 |
1.5 |
80 |
8 |
41 |
150 |
2500 |
M1 |
|
|
55 |
400-2600 |
1.5 |
170 |
8 |
86 |
150 |
2500 |
M1 |
|
|
70 |
400-2600 |
1.5 |
270 |
8 |
110 |
150 |
2500 |
M2 |
|
|
90 |
400-2600 |
1.5 |
270 |
8 |
141 |
150 |
2500 |
M2 |
|
|
110 |
400-2600 |
1.5 |
330 |
8 |
173 |
150 |
2500 |
M2 |
|
|
130 |
400-2600 |
1.5 |
410 |
12 |
212 |
150 |
2500 |
M3 |
|
|
160 |
400-2600 |
1.5 |
480 |
12 |
251 |
150 |
2500 |
M3 |
|
|
200 |
400-2600 |
1.5 |
600 |
12 |
314 |
150 |
2500 |
M3 |
|
|
250 |
400-2600 |
1.5 |
750 |
20 |
393 |
150 |
2500 |
M4/M8 |
|
|
300 |
400-2600 |
1.5 |
900 |
20 |
471 |
150 |
2500 |
M4/M8 |
|
|
400 |
400-2600 |
1.65 |
1000 |
40 |
640 |
150 |
2500 |
M4/M8 |
|
|
500 |
400-2600 |
1.65 |
1500 |
40 |
785 |
150 |
2500 |
M5/M9 |
|
|
600 |
400-2600 |
1.65 |
2400 |
40 |
785 |
150 |
2500 |
M5/M9 |
|
|
800 |
400-2600 |
1.65 |
2400 |
40 |
785 |
150 |
2500 |
M6/M10 |
|
|
1000 |
400-2600 |
1.65 |
3000 |
40 |
785 |
150 |
2500 |
M7/M11 |
|
Note: MDx in type column of water-cooling module represents any one of import models of MDC, MDK, MDA, MDX, MD, etc.
The corresponding domestic models of RM, SKKD, DD, MDD, 2RI and 100L, subject to circuit diagram
