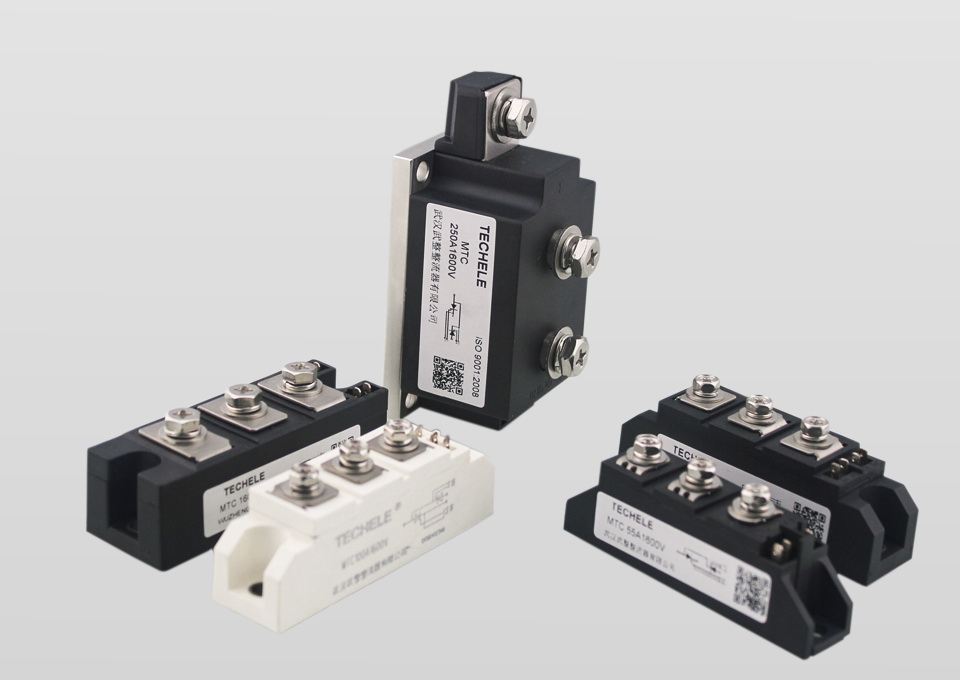

Thyristor/Diode Module
Features
Electrically-isolated chip and baseboard AC
2500V
Sealing package according to international
standard
Full crimping structure, sensitive to
temperature and power cycle duty
Modules under 350A with compulsive
wind-cooling. Modules under 400A either
with wind-cooling or water-cooling
Convenient installation, use and maintenance
Compact and lightweight
Welding technique under the protection of
vacuum and hydrogen gas
Typical Applications
AC & DC motor control
Various rectifying power supply
Industrial heating control
Dimming
Contactless switch
Motor soft start
Static reactive compensation
Welder
Frequency converter
UPS power supply
Battery charge and discharge
Module
IT(AV)
VDRMVRRM
ITMVTM
VFMIFM
IDRMIRRM
IGT
VGT
IH
dv/dt
di/dt
ITSMIFSM
Tjm
Viso
Outline
A
V
V
A
V
mA
mA
V
mA
V/µs
A/µs
Ax103
℃
V(AC)
25
400-2600
1.69
80
1.69
8
100
2.5
100
800
50
0.55
125
2500
M1
55
400-2600
1.69
170
1.50
8
100
2.5
100
800
50
1.25
125
2500
M1
70
400-2600
1.9
170
1.48
8
100
2.5
100
800
50
1.60
125
2500
M2
90
400-2600
1.9
270
1.94
15
100
2.5
100
800
100
2.00
125
2500
M2
110
400-2600
1.9
330
1.90
20
100
2.5
100
800
100
2.40
125
2500
M2
130
400-2600
1.9
410
1.96
20
150
2.5
100
800
100
3.80
125
2500
M3
160
400-2600
1.9
480
1.90
25
150
2.5
100
800
100
5.40
125
2500
M3
200
400-2600
1.9
600
1.90
30
180
2.5
100
800
100
7.20
125
2500
M4/M8
250
400-2600
1.9
750
1.90
40
180
2.5
100
800
100
8.50
125
2500
M4/M8
300
400-2600
1.9
900
1.90
30
180
2.5
100
800
100
9.30
125
2500
M4/M8
400
400-2600
1.9
1050
1.90
40
200
3.0
100
800
100
14.0
125
2500
M5/M9
500
400-2600
1.9
1500
1.90
50
200
3.0
100
800
100
16.0
125
2500
M5/M9
600
400-2600
1.9
2400
1.90
50
200
3.0
100
800
100
16.0
125
2500
M6/M10
800
400-2600
1.9
2400
1.90
50
200
3.0
100
800
100
16.0
125
2500
M7/M11
1000
400-2600
1.9
3000
1.90
50
200
3.0
100
800
100
16.0
125
2500
M7/M11
Note:
MFX in type column of water-cooling module represents any one of import models
of MFC, MFK, MFA, MFX, etc.
The corresponding domestic models of TM, SKKH, PD, IR, PE and TD, subject to circuit diagram.
