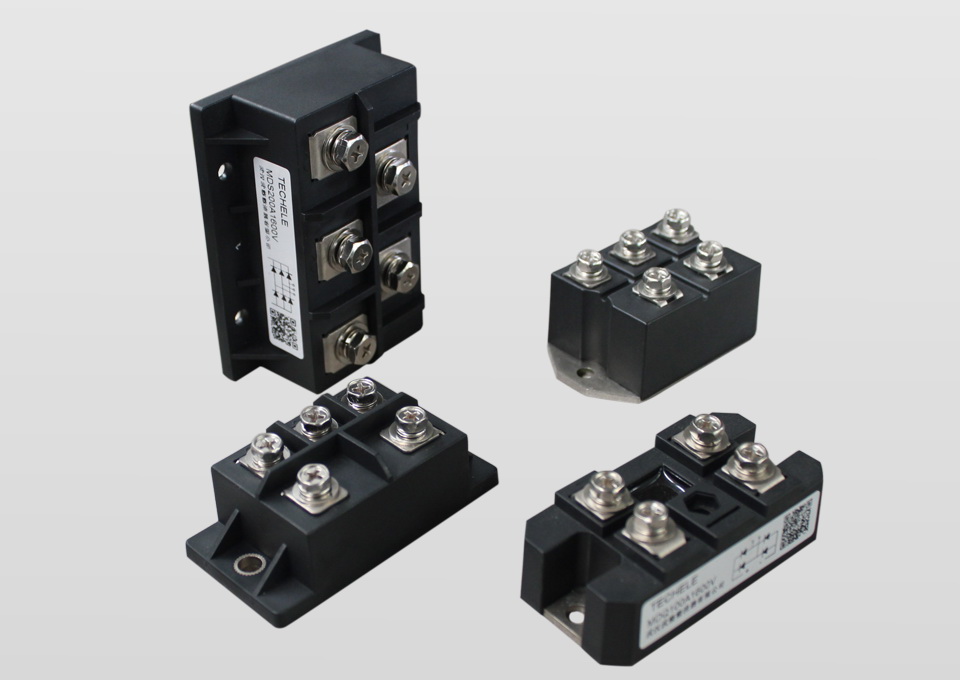

Single Phase/ Three Phase Bridge Modules

Features

■ Electrically-isolated chip and baseboard AC2500V

■ Sealing package according to international standard

Welding technique under the protection of vacuum and hydrogen gas

■ Compact and lightweight

■ Max. Work junction temperature up to 150 ℃

■ Low forward voltage drop

Typical Applications

■ Input of PWM frequency inverter

■ DC power supply for instrument equipment

■ Input of switch power supply and auxiliary current

■ Excitation power supply for DC motor

■ Convenient installation, use and maintenance

■ Inverter current

■ DC power supply for current charge

■ Rectifying power supply

Details

Three Phase Bridge Modules

Model	I_d	I_F(AV)	T_c	V_RRM	I_RRM	V_TM/I_TM	T_jm	V_iso	Outline
Model	A	A	℃	V	mA	V/A	℃	V(AC)	Outline
MDS30	30	10	100	600~2000	8	1.45/30	150	2500	M47 M53
MDS60	60	20	100	600~2000	8	1.45/60	150	2500	M47 M53
MDS100	100	35	100	600~2000	10	1.45/100	150	2500	M47 M53
MDS150	150	50	100	600~2000	10	1.50/150	150	2500	M48 M46
MDS200	200	68	100	600~2000	10	1.50/200	150	2500	M48 M46
MDS300	300	100	100	600~2000	10	1.50/30	150	2500	M49
MDS400	400	135	100	600~2000	10	1.50/400	150	2500	M49
MDS500	500	168	100	600~2000	10	1.50/500	150	2500	M50
MDS600	600	200	100	600~2000	10	1.50/600	150	2500	M50
MDS800	800	270	100	600~2000	10	1.50/800	150	2500	M50
MDS1000	1000	330	100	600~2000	10	1.50/1000	150	2500	M50

Single Phase Bridge Modules (MDQ)

Model	I_d	I_F(AV)	T_c	V_RRM	I_RRM	V_TM/I_TM	T_jm	V_iso	Outline
Model	A	A	℃	V	mA	V/A	℃	V(AC)	Outline
MDQ30	30	15	100	600~2000	8	1.45/45	150	2500	M47 M53
MDQ60	60	30	100	600~2000	8	1.45/90	150	2500	M47 M53
MDQ100	100	50	100	600~2000	10	1.45/150	150	2500	M47 M53
MDQ150	150	75	100	600~2000	10	1.50/225	150	2500	M48 M46
MDQ200	200	100	100	600~2000	10	1.50/300	150	2500	M48 M46
MDQ300	300	150	100	600~2000	10	1.50/450	150	2500	M49
MDQ400	400	200	100	600~2000	10	1.50/600	150	2500	M49
MDQ500	500	250	100	600~2000	10	1.50/750	150	2500	M50
MDQ600	600	300	100	600~2000	10	1.50/900	150	2500	M50
MDQ800	800	400	100	600~2000	10	1.50/1200	150	2500	M50
MDQ1000	1000	500	100	600~2000	10	1.50/1200	150	2500	M50
