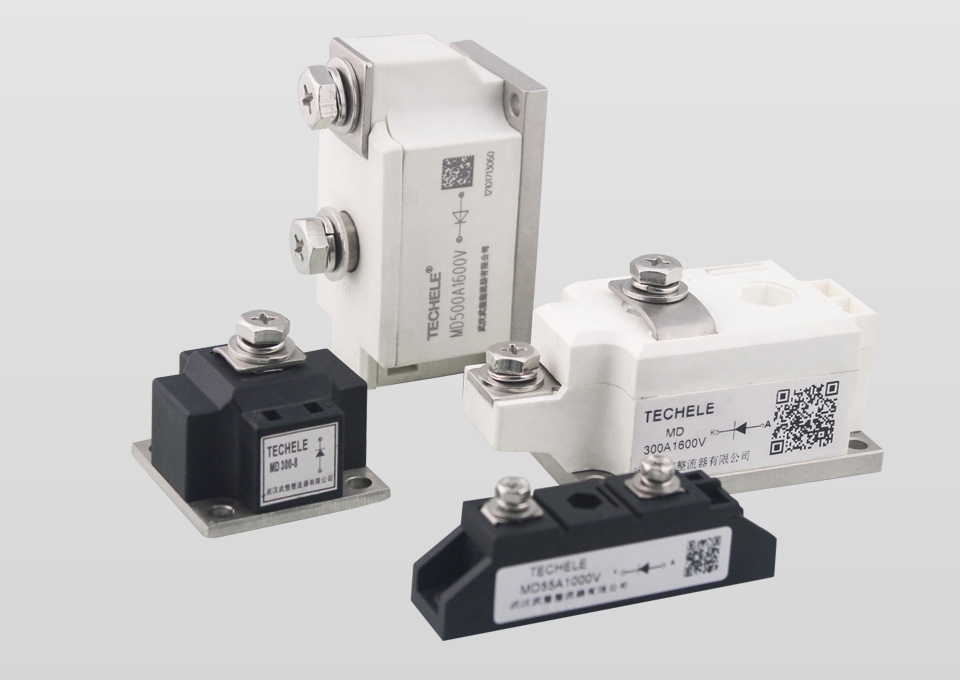

Non-isolated Power Modules

Features

■ Non-insolated, baseboard as common electrode

■ Sealing package according to international standard

■ Full crimping structure, sensitive to temperature and power cycle duty

■ Max. work junction temperature up to 150℃

■ High surge current

■ Low forward voltage drop

Details

Non-isolated Thyristor Modules (MTG, MTY)

Model	I_T(AV)	V_DRM V_RRM	dv/dt	di/dt	I_DRMI_RRM	I_GT	V_GT	I_H	V_TM/I_TM	Tjm	Outline
	A	V	V/μS	A/μS	mA	mA	V	mA	V/A	℃
MTx70A	70	400~2600	800	100	12	100	2.5	100	1.67/210	125	M37 M38 M36
MTx110A	110	400~2600	800	100	12	100	2.5	100	1.67/330	125	M37 M38 M36
MTx160A	160	400~2600	800	100	12	100	2.5	100	1.67/480	125	M37 M38 M36
MTx200A	200	400~2600	800	100	20	150	2.5	100	1.70/600	125	M39
MTx250A	250	400~2600	800	100	20	150	2.5	100	1.70/750	125	M39
MTx300A	300	400~2600	800	100	25	150	2.5	100	1.70/900	125	M41

Notice: MTχ in type column represents MTG or MTY.

Non-isolated Rectifier Tube & Mixed Modules (MDG, MDY)

Model	I_F(AV)	V_RRM	I_RRM	V_TM/I_TM	I_F(RMS)	Tjc	Outline
	A	V	mA	V/A	A	℃
MDx70A	70	400~2600	12	1.57/210	157	150	M2 M36
MDx110A	110	400~2600	12	1.57/330	157	150	M2 M36
MDx160A	160	400~2600	12	1.57/480	236	150	M37 M38 M36
MDx200A	200	400~2600	20	1.60/600	314	150	M39
MDx250A	250	400~2600	20	1.60/750	393	150	M39
MDx300A	300	400~2600	25	1.60/900	471	150	M39

Notice: MDχ in type column represents MDG or MDY.

Non-isolated Thyristor/diode Modules (MFG, MFY)

Model

I_T(AV)

V_DRM V_RRM

dv/dt

di/dt

I_DRMI_RRM

I_GT

V_GT

I_H

V_TM/I_TM

Tjm

Outline

A

V

V/μS

A/μS

mA

mA

V

mA

V/A

℃

MFx70A

70

400~2600

800

100

12

100

2.5

100

1.67/210

125

M37 M38 M36

MFx110A

110

400~2600

800

100

12

100

2.5

100

1.67/330

125

M37 M38 M36

MFx160A

160

400~2600

800

100

12

100

2.5

100

1.67/480

125

M37 M38 M36

MFx200A

200

400~2600

800

100

20

150

2.5

100

1.70/600

125

M39

MFx250A

250

400~2600

800

100

20

150

2.5

100

1.70/750

125

M39

MFx300A

300

400~2600

800

100

25

150

2.5

100

1.70/900

125

M41

Notice: MFχ in type column represents MFG or MFY.
