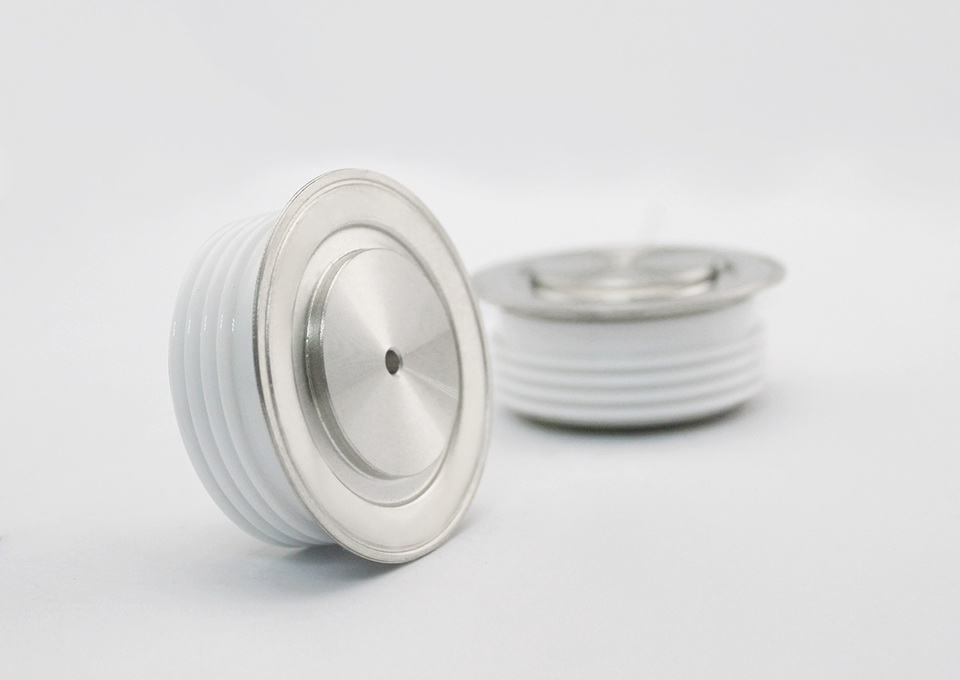

Fast switching Thyristor (Capsule Version)

Model

V_DRMV_RRM

I_T(AV)

t_q

I_TSM

d_v/d_t

d_i/d_t

I_DRMI_RRM

I_GT

V_GT

I_H

V_TM/I_TM

V_TO）

r_T

R_th(j-hs)

Tjm

M²

Outline

55°C

100 °C

10ms

V

A

μs

KA

V/μs

A/μs

mA

mA

V

mA

V/A

V

mΩ

°C/W

°C

KN

KK200A-E

800-1600

200

16-35

2.5

500

200

30

40-250

0.9-2.5

20-400

3.1/600

1.60

1.32

0.065

115

5.3-12

C7/C2

KK300A-E

800-1600

300

16-35

3.8

500

200

30

40-250

0.9-2.5

20-400

3.0/900

1.60

1.32

0.055

115

5.3-10

C8/C3

KK400A-E

800-1600

400

16-35

5.0

500

300

40

40-250

0.9-2.5

20-400

3.0/1200

1.32

0.66

0.035

115

10-20

C17/C4

KK500A-E

800-1800

500

16-35

6.3

500

300

40

40-250

0.9-2.5

20-400

3.15/1500

1.36

0.53

0.035

115

10-20

C17/C4

KK600A-E

800-1800

600

16-35

7.5

500

300

50

40-300

0.9-3.0

20-400

3.15/1800

1.42

0.50

0.032

115

15-20

C18/C5

KK800A-E

800-1800

800

16-35

10

500

300

60

40-300

0.9-3.0

20-500

3.15/2400

1.50

0.45

0.030

115

18-25

C19/C5

KK1000A-E

800-1800

1000

16-35

12

500

500

80

40-300

0.9-3.0

20-500

3.15/3000

1.56

0.33

0.024

115

19-26

C20

KK1200A-E

800-1800

1200

16-35

14

500

500

100

40-300

0.9-3.0

20-500

3.15/3000

1.51

0.32

0.022

115

21-30

C21

KK1500A-E

800-1800

1500

16-35

16

500

500

120

40-400

0.9-3.5

20-500

3.15/3000

1.48

0.28

0.020

115

21-30

C21

KK1800A-E

800-1800

1800

16-35

19

500

500

120

40-400

0.9-4.0

20-800

3.15/4000

1.41

0.23

0.017

115

27-34

C23

KK2000A-E

800-1800

2000

25-40

21

500

600

160

40-450

0.9-4.5

20-1000

3.15/4000

1.45

0.21

0.016

115

30-40

C24

KK2500A-E

800-1800

2500

25-40

27

500

600

200

40-450

0.9-4.5

20-1000

3.15/500

1.30

0.14

0.011

115

35-47

C25

KK2000A-G

1900-2500

2000

35-70

21

500

600

160

40-450

0.9-4.5

20-1000

3.15/4000

1.48

0.23

0.016

115

30-40

C24

KK2500A-G

1900-2500

2500

35-70

27

500

600

200

40-250

0.9-4.5

20-1000

3.15/5000

1.48

0.18

0.011

115

35-47

C25

KK3000A-G

1900-2500

3000

40-80

31

500

600

250

40-450

0.9-4.5

20-1000

3.15/5000

1.10

0.14

0.009

115

70-85

C25/C26

KK4000A-G

1900-3000

4000

50-90

45

500

600

250

40-450

0.9-4.5

20-1000

2.9/5000

0.9

0.09

0.0075

115

98-113

C26/C27
