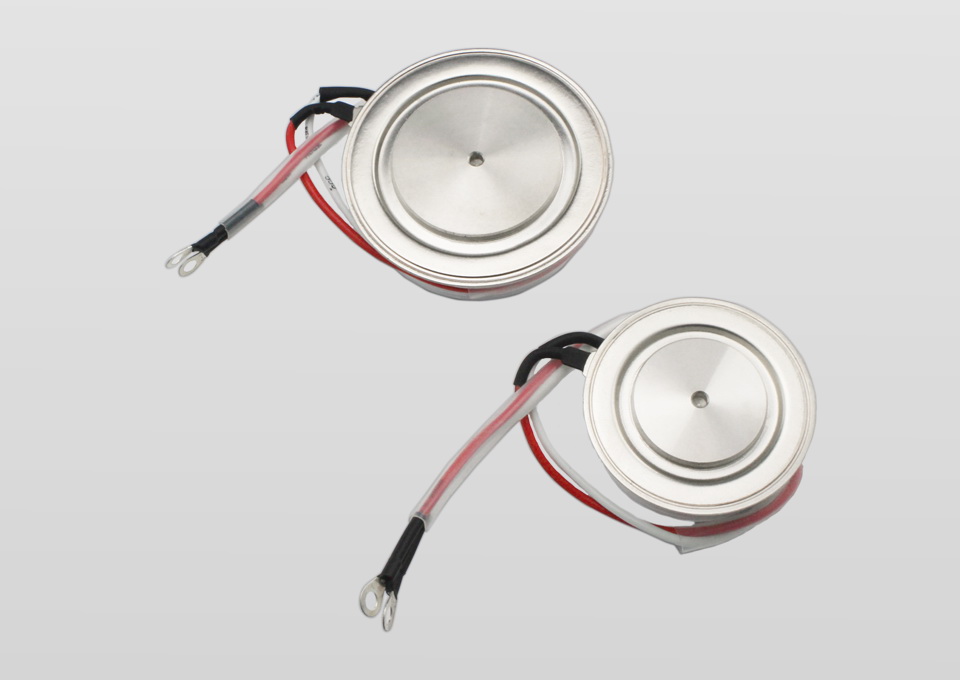

Phase Control Thyristor (Capsule Version)

Model

V_DRM/V_RRM

I_T(AV)@T_h

I_TSM

d_v/d_t

d_i/d_t

I_DRM/I_RRM

I_GT

V_GT

I_H

V_TM/I_TM

V_TO

r_T

R_th(j-hs)

T_jm

M²

Outline

10 ms

25 °C

125 °C

V

A

°C

KA

V/μs

A/μs

mA

mA

V

mA

V/A

V

mΩ

°C/W

°C

KN

KP200A-E

1100-1800

200

97

2.5

300

100

16

30-200

0.8-2.0

20-150

2.2/600

0.85

1.20

0.095

125

3.3-5.5

C7/C2

KP300A-E

1100-1800

300

98

3.8

300

100

30

35-250

0.8-2.5

20-200

2.2/900

0.877

1.02

0.055

125

5.3-10

C8/C3

KP500A-E

1100-1800

500

101

6.4

300

100

40

35-300

0.8-2.5

20-250

2.2/1500

0.85

0.42

0.035

125

10-20

C17/C4/C38

KP800A-E

1100-1800

800

84

10

300

100

50

40-300

0.8-3.0

20-250

2.2/2400

0.91

0.35

0.032

125

15-20

C19/C5/C38

KP1000A-E

1100-1800

1000

75

13

300

150

60

40-300

0.8-3.0

20-250

2.2/3000

0.93

0.29

0.030

125

18-25

C19/C6/C40

KP1200A-E

1100-1800

1200

79

15

300

150

80

40-300

0.8-3.0

20-300

2.2/3000

0.91

0.23

0.024

125

19-26

C20/C40

KP1600A-E

1100-1800

1600

61

20

300

200

100

40-300

0.8-3.0

20-300

2.2/3000

1.1

0.18

0.022

125

21-30

C21

KP1800A-E

1100-1800

1800

66

22.5

300

200

120

40-300

0.8-3.0

20-300

2.2/4000

0.98

0.15

0.020

125

21-30

C23/C22

KP2000A-E

1100-1800

2000

72

25

300

200

120

40-300

0.8-3.0

20-300

2.2/4000

0.87

0.14

0.017

125

27-34

C23/C24

KP2500A-E

1100-1800

2500

58

31

300

250

160

40-300

0.8-3.0

20-300

2.2/5000

0.80

0.14

0.016

125

30-40

C25/C24

KP3000A-E

1100-1800

3000

75

38

300

250

200

40-300

0.8-3.0

20-300

2.2/5000

0.84

0.09

0.011

125

35-47

C25

KP300A-C

400-1000

300

82

2.5

300

100

16

30-200

0.8-2.5

20-150

2.2/900

0.75

1.00

0.095

125

3.3-5.5

C7/C3

KP400A-C

400-1000

400

91

3.8

300

100

30

35-250

0.8-2.5

20-200

2.2/1200

0.7

0.85

0.055

125

5.3-10

C8/C4

KP500A-C

400-1000

500

95

5

300

100

40

35-250

0.8-2.5

20-200

1.8/1500

0.89

0.65

0.035

125

10-20

C17/C4

KP600A-C

400-1000

600

97

6.4

300

100

40

35-300

0.8-2.5

20-250

1.8/1800

0.8

0.35

0.035

125

10-20

C17/C4

KP800A-C

400-1000

800

88

10

300

100

50

35-300

0.8-2.5

20-250

1.8/2400

0.85

0.30

0.032

125

15-20

C18/C5

KP1000A-C

400-1000

1000

80

13

300

150

60

40-300

0.8-3.0

20-250

1.8/3000

0.88

0.25

0.030

125

18-25

C19/C6

KP1600A-C

400-1000

1600

68

20

300

200

80

40-300

0.8-3.0

20-300

1.8/3000

0.89

0.15

0.024

125

19-26

C20/C21

KP1800A-C

400-1000

1800

60

22.5

300

200

100

40-300

0.8-3.0

20-300

1.8/4000

0.88

0.17

0.022

125

21-30

C22/C23

KP2000A-C

400-1000

2000

63

25

300

200

120

40-300

0.8-3.0

20-300

1.8/4000

0.95

0.12

0.02

125

21-30

C23

KP2500A-C

400-1000

2500

64

31

300

250

120

40-300

0.8-3.0

20-300

1.8/5000

0.75

0.11

0.017

125

27-34

C24

KP3000A-C

400-1000

3000

64

38

300

250

160

40-300

0.8-3.0

20-300

1.8/5000

0.82

0.08

0.016

125

30-40

C25

KP3500A-C

400-1000

3500

70

44

300

250

200

40-300

0.8-3.0

20-300

1.8/5000

0.82

0.07

0.011

125

35-47

C25

KP4000A-C

400-1000

4000

72

55

300

250

250

40-300

0.8-3.0

20-300

1.8/5000

0.88

0.06

0.009

125

70-85

C26

KP400A-J

3100-4200

400

88

6.4

300

100

50

35-300

0.8-2.5

20-250

3.2/1000

1.18

1.49

0.035

125

10-20

C17

KP800A-J

3100-4200

800

70

11.5

500

100

100

40-300

0.8-3.0

20-250

2.8/1500

1.24

0.77

0.024

125

19-26

C20

KP1250A-J

3100-4200

1250

70

16

500

200

120

40-300

0.8-3.0

20-300

2.8/3000

1.17

0.35

0.017

125

27-34

C23

KP1600A-J

3100-4200

1650

70

20

300

250

200

40-300

0.8-3.0

20-300

2.6/3000

1.15

0.32

0.011

125

35-47

C23

KP2500A-J

3100-4200

2500

70

40

500

250

250

40-300

0.8-3.0

20-300

2.6/5000

1.0

0.18

0.009

125

70-85

C25

KP2500A-H

1900-3000

500

88

6.8

500

100

50

40-300

0.8-3.0

20-250

2.4/1500

1.2

0.78

0.032

125

15-20

C17/C18

KP1000A-H

1900-3000

1000

77

13

500

150

80

40-300

0.8-3.0

20-250

2.4/2400

1.11

0.36

0.024

125

19-26

C20

KP1200A-H

1900-3000

1200

78

15

500

150

100

40-300

0.8-3.0

20-300

2.4/3000

0.97

0.27

0.022

125

21-30

C21

KP1600A-H

1900-3000

1600

60

20

500

200

120

40-300

0.8-3.0

20-300

2.4/3000

1.2

0.21

0.02

125

21-30

C22

KP1800A-H

1900-3000

1800

69

22.5

500

200

120

40-300

0.8-3.0

20-300

2.4/4000

0.99

0.19

0.017

125

27-34

C23

KP2000A-H

1900-3000

2000

63

25

500

250

160

40-300

0.8-3.0

20-300

2.4/4000

1.07

0.19

0.016

125

30-40

C24

KP2500A-H

1900-3000

2500

72

31

500

250

200

40-300

0.8-3.0

20-300

2.4/5000

1.0

0.15

0.011

125

35-47

C25

KP3500A-H

1900-3000

3500

64

44

500

250

250

40-300

0.8-3.0

20-300

2.4/5000

0.99

0.11

0.009

125

70-85

C25/C26

KP4000A-H

1900-3000

4000

68

45

500

250

200

40-450

0.9-3.5

20-1000

2.3/5000

0.91

0.09

0.075

125

98-113

C26

KP700A-M

4300-5500

700

75

10

500

100

120

40-300

0.8-3.0

20-250

3.2/1500

1.30

0.76

0.024

125

19-26

C20

KP1100A-M

4300-5500

1100

71

17

500

200

120

40-300

0.8-3.0

20-250

3.0/3000

1.30

0.58

0.017

125

27-34

C23

KP1500A-M

4300-5500

1500

75

20

500

250

120

40-300

0.8-3.0

20-250

2.8/3000

1.30

0.42

0.011

125

35-47

C24

KP300A-R

5600-6500

300

70

7

500

100

200

40-300

0.8-3.0

20-250

2.7/1000

1.25

1.045

0.023

125

14-24

C44/C17

KP700A-R

5600-6500

700

70

11.8

500

100

200

40-300

0.8-3.0

20-250

2.7/1000

1.25

1.045

0.023

125

14-24

C20/C45

KP1300A-R

5600-6500

1300

70

16

500

150

200

40-300

0.8-3.0

20-250

2.7/1500

1.21

0.45

0.014

125

27-34

C24

KP1800A-R

5600-6500

1800

70

22

500

200

250

40-300

0.8-3.0

20-250

2.6/1600

1.20

0.28

0.010

125

35-47

C24
