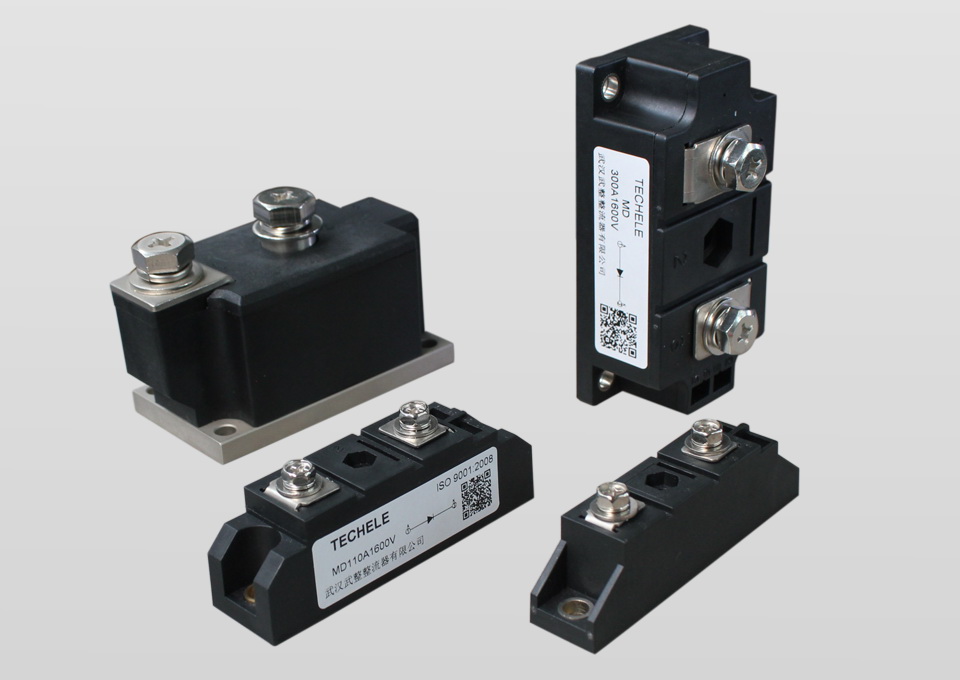

Fast Thyristor/ Diode Modules

Features

■ Electrically-isolated chip and baseboard AC 2500V

■ Sealing package according to international Standard

■ Full crimping structure, sensitive to temperature and power cycle duty

■ Modules under 200A with compulsive wind-cooling. Modules under 300A either

with wind-cooling or water-cooling

■ Convenient installation, use and maintenance

■ Compact and lightweight



Typical Applications

■ Motor control and drive

■ UPS power supply

■ Electric chopper


■ Welder

■ Inverter

■ Inductive heating

■ Various compulsive current

■ converters


Details

Fast Thyristor Modules (MKC, MKA, MKK, MKX, MK)

Module

IT(AV)

Tc

VDRM VRRM

dv/dt

di/dt

IDRM/IRRM

IGT

VGT

IH

VTM/ITM

tq

Rjc

Tjm

Viso

Outline



A

V

V/μS

A/μS

mA

mA

V

mA

V/A

μS

/W

V(AC)



MKx55A

55

85

600~1600

800

200

30

150

2.5

60

1.78/165

15~30

0.120

115

2500

M1

MKx90A

90

85

600~1600

800

200

30

150

2.5

80

1.78/270

15~30

0.180

115

2500

M2

MKx160A

160

85

600~1600

800

200

40

180

2.5

100

1.78/480

15~30

0.140

115

2500

M3

MKx200A

200

85

600~1600

800

200

50

180

2.5

100

1.77/600

15~30

0.100

115

2500

M4/M8

MKx300A

300

85

600~1600

800

200

80

200

3.0

100

1.75/900

15~30

0.070

115

2500

M4/M8

MKx500A

500

85

600~1600

800

200

80

200

3.0

100

2.20/1500

15~30

0.110

115

2500

M5/M9


Fast Thyristor- Diode Mixed Modules (MHC, MHA, MHK, MHX)

Module

IT(AV)

Tc

VDRM VRRM

dv/dt

di/dt

IDRM/IRRM

IGT

VGT

IH

VTM/ITM

tq

Rjc

Tjm

Viso

Outline



A

V

V/μS

A/μS

mA

mA

V

mA

V/A

μS

/W

V(AC)



MHx55A

55

85

600~1600

800

200

30

150

2.5

60

1.78/165

15~30

0.120

115

2500

M1

MHx90A

90

85

600~1600

800

200

30

150

2.5

80

1.78/270

15~30

0.180

115

2500

M2

MHx160A

160

85

600~1600

800

200

40

180

2.5

100

1.78/480

15~30

0.140

115

2500

M3

MHx200A

200

85

600~1600

800

200

50

180

2.5

100

1.77/600

15~30

0.100

115

2500

M4/M8

MHx300A

300

85

600~1600

800

200

80

200

3.0

100

1.75/900

15~30

0.070

115

2500

M4/M8

MHx500A

500

85

600~1600

800

200

80

200

3.0

100

2.20/1500

15~30

0.110

115

2500

M5/M9

Fast Rectifier Diode Modules (MZC, MZA, MZK, MZX, MZ)

Module

IF(AV)

Tc

VDRM VRRM

VFM

IFM

IRRM

IF(RMS)

IFSM

trr

Tjm

Viso

Outline



A

V

V

A

mA

A

A×103

μS

V(AC)



MZx55A

55

100

600~1600

1.60

165

20

85

1.6

2

140

2500

M1

MZx90A

90

100

600~1600

1.60

270

20

135

2.6

2

140

2500

M2

MZx160A

160

100

600~1600

1.60

450

30

236

4.30

2

140

2500

M3

MZx200A

200

100

600~1600

1.58

600

40

314

6.00

2

140

2500

M3

MZx300A

300

100

600~1600

1.55

900

70

471

8.30

3

140

2500

M4/M8

MZx500A

500

60

600~1600

2.05

1500

70

471

6.00

3

140

2500

M5/M9

Remark:* water-cooling (module)

The corresponding domestic models of PK, EMGE, SKKH, TD, MDD and IR, subject to circuit diagram.
