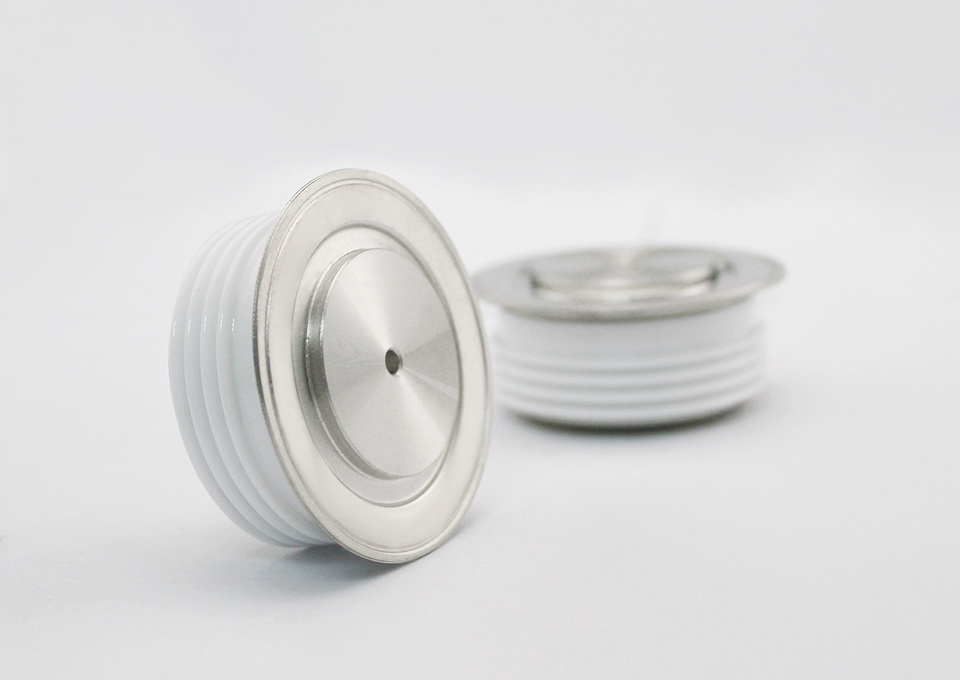

Fast Recovery Diode (Capsule Version)

  Model

V_RRM

I_F(AV)@T_hs

t_rr

Q_rr

I _FSM

I^2t

I _RRM

V_FM/I_FM

V_FO

r_F

R_th(j-hs)

T_jm

M²

 Outline

100 °C

10 ms

25 °C

150 °C

V

A

°C

μs

μc

KA

KA²s

mA

V/A

V

mΩ

°C/W

°C

KN

ZK200A-B

200-1000

200

124

2

50

2.7

40

16

2.4/600

1.10

0.72

0.090

150

3.3-5.5

C7

ZK400A-B

200-1000

400

116

3

90

5.4

145

30

2.6/1200

1.17

0.36

0.055

150

5.3-10

C8

ZK800A-B

200-1000

800

102

3

90

10

500

40

2.8/2400

1.15

0.34

0.033

150

10-20

C17/C18

ZK200A-C

1100-2000

200

118

2

70

2.7

40

16

2.4/600

1.48

0.65

0.090

150

3.3-5.5

C7

ZK400A-C

1100-2000

400

112

3

90

5.4

145

30

2.6/1200

1.30

0.42

0.055

150

5.3-10

C8

ZK800A-C

1100-2000

800

96

3

130

10

500

40

2.8/2400

1.31

0.37

0.033

150

10-20

C17/C18

ZK300A-C

1100-2000

300

117

3

100

4.1

90

30

2.6/900

1.30

0.55

0.065

150

5.3-12

C2

ZK1200A-C

1100-2000

1200

92

4

250

15

1100

80

2.8/3000

1.42

0.26

0.022

150

19-26

C20

ZK1600A-B

200-1000

1600

82

4

150

20

2000

80

2.8/3000

1.15

0.20

0.022

150

19-26

C21

ZK2500A-C

1100-2000

2500

71

6

700

31

4800

120

3.0/5000

1.12

0.14

0.016

150

27-34

C24/C25

ZK3500A-C

1100-2000

3500

64

6

1300

44

9700

200

3.0/5000

1.19

0.12

0.011

150

35-47

C24/C25
