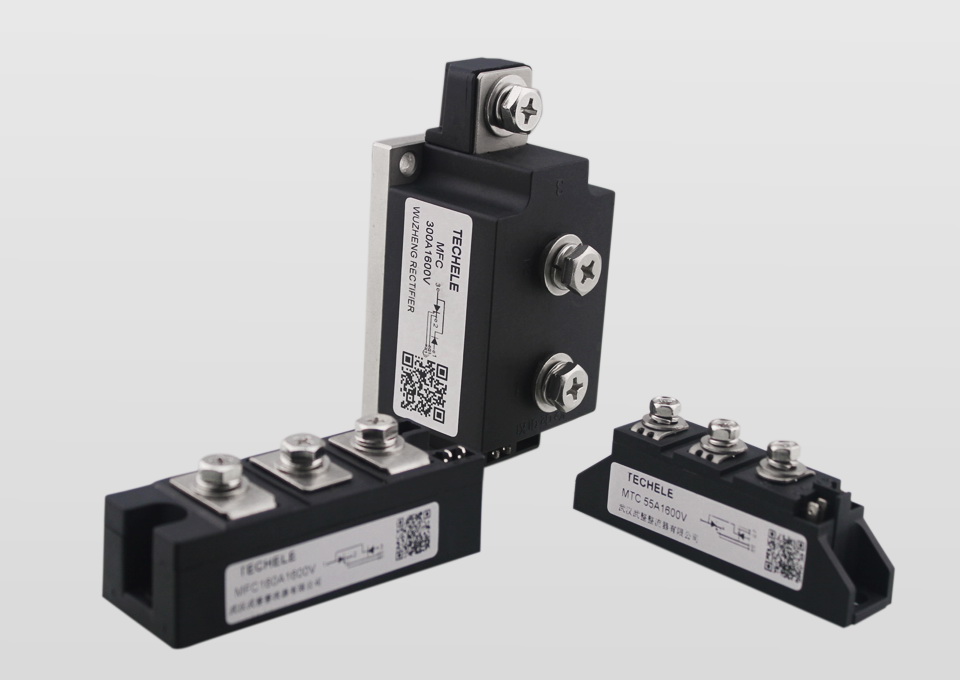

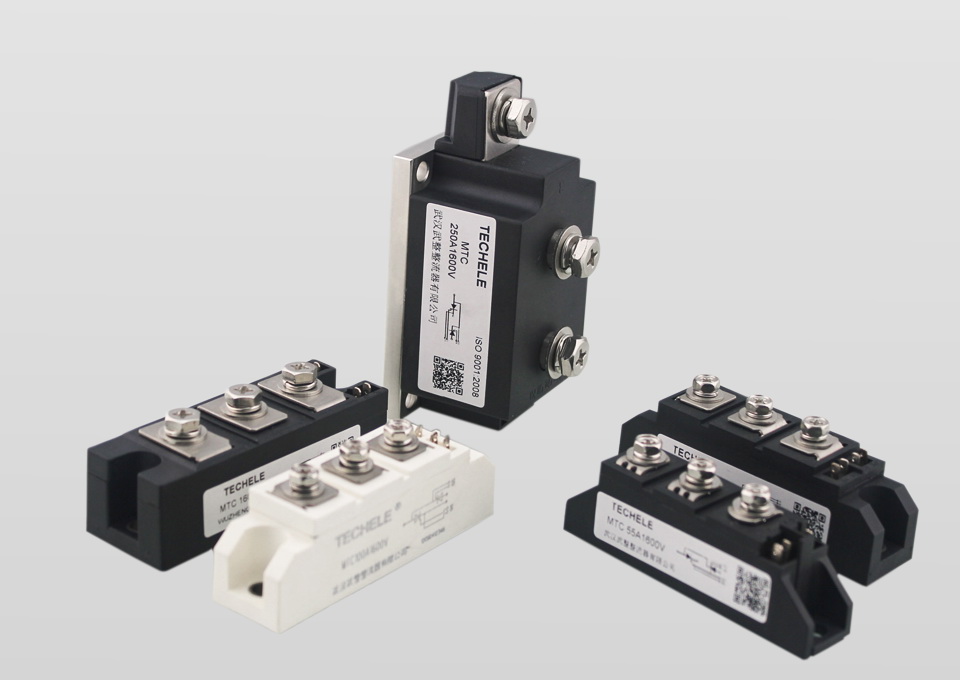

Thyristor Modules

Features

Electrically-isolated chip and baseboard AC

2500V

Sealing package according to international

standard

Full crimping structure, sensitive to

temperature and power cycle duty

Modules under 350A with compulsive

wind-cooling. Modules under 400A either

with wind-cooling or water-cooling

Convenient installation, use and maintenance

Compact and lightweight

Welding technique under the protection of

vacuum and hydrogen gas


Typical Applications

AC & DC motor control

Various rectifying power supply

Industrial heating control

Dimming

Contactless switch

Motor soft start

Static reactive compensation

Welder

Frequency converter

UPS power supply

Battery charge and discharge


Details

Model

IT(AV)

VDRMVRRM

ITMVTM

IDRMIRRM

IGT

VGT

IH

dv/dt

di/dt

Tjm

Viso

Outline

A

V

V

A

mA

mA

V

mA

V/µs

A/µs

VAC

MTx25A

25

400-2600

1.5

80

8

100

2.5

100

800

50

125

2500

M1

MTx55A

55

400-2600

1.5

80

8

100

2.5

100

800

50

125

2500

M1

MTx70A

70

400-2600

1.9

170

10

100

2.5

100

800

50

125

2500

M2

MTx90A

90

400-2600

1.9

270

15

100

2.5

100

800

100

125

2500

M2

MTx110A

110

400-2600

1.9

330

20

100

2.5

100

800

100

125

2500

M2

MTx130A

130

400-2600

1.9

410

25

150

2.5

100

800

100

125

2500

M3

MTx160A

160

400-2600

1.9

480

25

150

2.5

100

800

100

125

2500

M3

MTx200A

200

400-2600

1.9

600

30

180

2.5

100

800

100

125

2500

M4/M8

MTx250A

250

400-2600

1.9

750

30

180

2.5

100

800

100

125

2500

M4/M8

MTx300A

300

400-2600

1.9

900

40

180

2.5

100

800

100

125

2500

M4/M8

MTx400A

400

400-2600

1.9

1050

40

200

3.0

100

800

100

125

2500

M5/M9

MTx500A

500

400-2600

1.9

1500

40

200

3.0

100

800

100

125

2500

M5/M9

MTx600A

600

400-2600

1.9

2400

40

200

3.0

100

800

100

125

2500

M6/M10

MTx800A

800

400-2600

1.9

2400

40

200

3.0

100

800

100

125

2500

M7/M11

MTx1000A

1000

400-2600

1.9

3000

40

200

3.0

100

800

100

125

2500

M7/M11

Note: MTx in type column of water-cooling module represents any one of import models of MTC, MTK, MTA, MTX, MT, etc.

The corresponding home-made models of PK, SKKT, IR, EMGE, TM, MSG, MCC and MTT, subject to circuit diagram.
