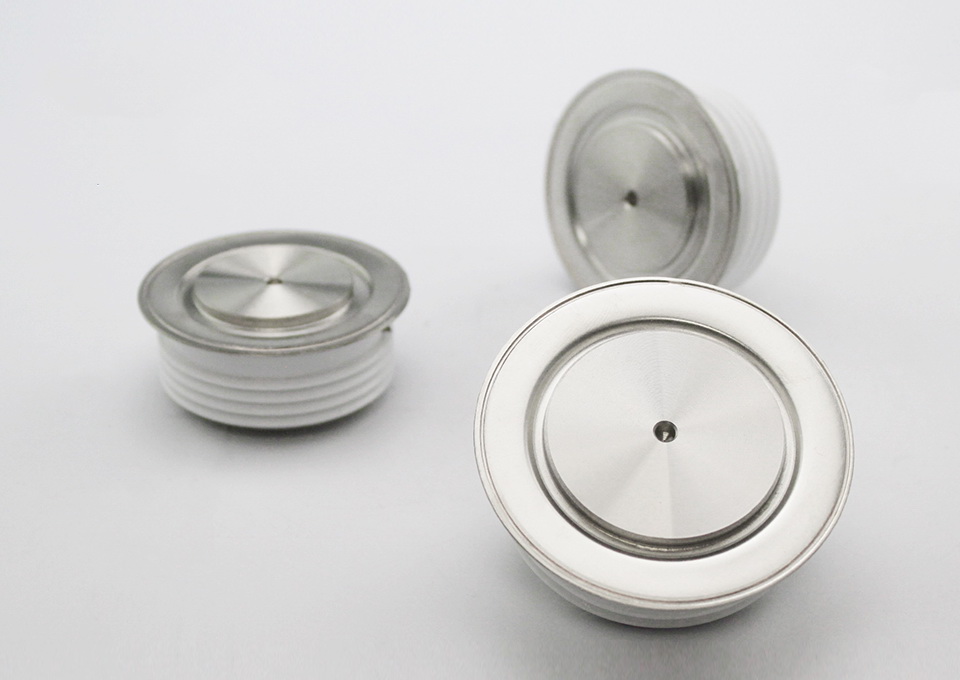

Triac Thyristors (Capsule Version)
Features:
All diffused technic
Central gate
Disc type ceramic casing encapsulation
Bifacial/Double faces cooling
Equal to the reverse parallel connection of two common thyristors
Under suitable gate current, forward and reverse conducting could be both achieved.
Typical Application:
Contactless AC switches
AC power regulation and control
Thermal/Temp. control
AC switches
|
Model |
VDRM |
IT(RMS) THS |
ITSM |
dv/dt |
di/dt |
IDRM |
IGT |
VGT |
IH |
VTM/ITM |
VTO |
rT |
Rth（j-hs) |
Tjm |
M2 |
Outline |
|
|
|
|
10ms |
|
|
|
25℃ |
125℃ |
|
|
|
|||||||
|
V |
A |
℃ |
KA |
V/µs |
A/µs |
mA |
mA |
V |
mA |
V/A |
V |
mΩ |
℃/W |
℃ |
KN |
||
|
500-1800 |
100 |
85 |
1.7 |
500 |
50 |
20 |
20-200 |
0.8-2.5 |
20-200 |
2.4/300 |
0.99 |
1.90 |
0.60 |
125 |
5.3-10 |
C1/C7 |
|
|
500-1800 |
200 |
90 |
1.7 |
500 |
50 |
20 |
20-200 |
0.8-2.5 |
20-200 |
2.4/300 |
0.99 |
1.85 |
0.60 |
125 |
5.3-10 |
C2/C7 |
|
|
500-1800 |
300 |
101 |
2.5 |
500 |
50 |
30 |
20-200 |
0.8-2.5 |
20-200 |
2.7/450 |
0.99 |
1.80 |
0.055 |
125 |
5.3-10 |
C3/C8 |
|
|
500-1800 |
500 |
99 |
4 |
500 |
50 |
40 |
20-300 |
0.8-3.0 |
20-300 |
2.7/750 |
0.90 |
1.02 |
0.040 |
125 |
10-20 |
C3/C4 |
|
|
500-1800 |
600 |
95 |
4.2 |
500 |
50 |
40 |
20-300 |
0.8-3.0 |
20-300 |
2.7/900 |
0.90 |
1.02 |
0.035 |
125 |
10-20 |
C4/C17 |
|
|
500-1800 |
800 |
81 |
6.8 |
500 |
50 |
50 |
20-350 |
0.8-3.5 |
20-400 |
2.7/1200 |
1.00 |
0.85 |
0.035 |
125 |
15-20 |
C4 |
|
|
500-1800 |
1000 |
81 |
6.8 |
500 |
50 |
50 |
20-350 |
0.8-3.5 |
20-400 |
2.7/1200 |
1.00 |
0.85 |
0.035 |
125 |
20-30 |
C6/C20 |
|
