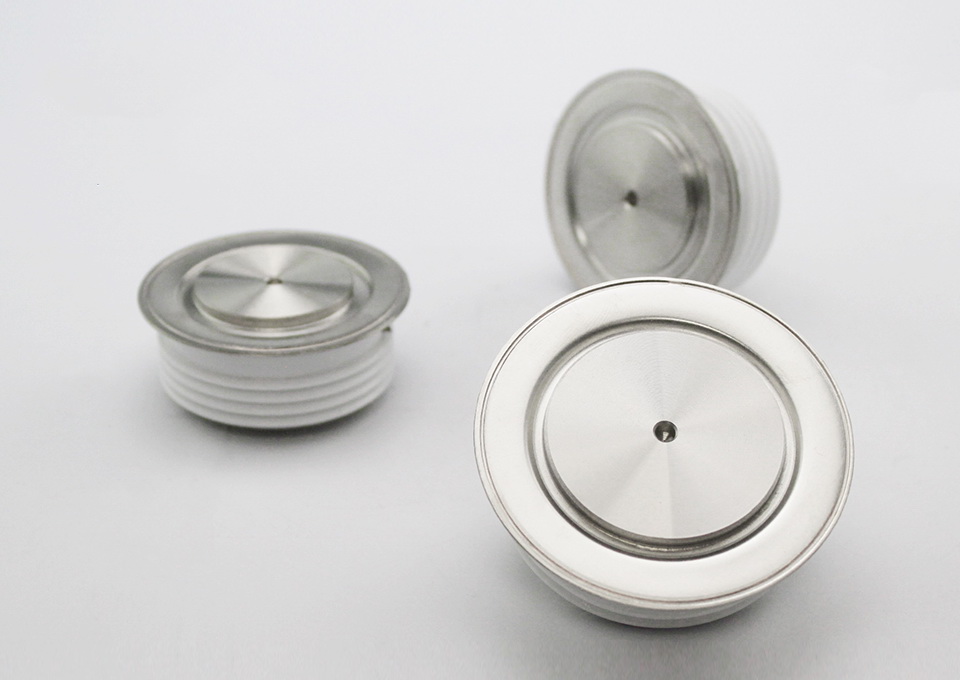

Выпрямительные Диоды Серия ZP (Таблеточное Исполнение)
Особенности:
1, Низкое прямое падение давления
2, Герметичные металлические корпуса
с керамическими изоляторами
3, Мягкое восстановление
Применения:
1, Электропередача постоянным током высокого напряжения
2, Источник бесперебойного питания
3, Прицепная система поездов
4, Электрический привод
|
Модели |
VRRM |
IF(AV) |
IFSM |
IRRM |
VFM/IFM |
VFO |
rF |
Rth(j-hs) |
Tjm |
M2 |
Конструкция |
||
|
|
|
10 ms |
25 °C |
150 °C |
|
|
|
|
|||||
|
V |
A |
°C |
KA |
KA2s |
mA |
V/A |
V |
mΩ |
°C/W |
°C |
KN |
||
|
ZP200A-B |
200-1000 |
200 |
130 |
2.8 |
40 |
16 |
1.8/600 |
0.73 |
0.68 |
0.090 |
150 |
3.3-5.5 |
C2/C7 |
|
ZP300A-B |
200-1000 |
300 |
126 |
4.2 |
90 |
30 |
1.8/900 |
0.98 |
0.31 |
0.065 |
150 |
5.3-12 |
C2/C8 |
|
ZP400A-B |
200-1000 |
400 |
122 |
5.6 |
160 |
30 |
1.8/1200 |
0.95 |
0.31 |
0.055 |
150 |
5.3-10 |
C3/C8 |
|
ZP500A-B |
200-1000 |
500 |
120 |
7 |
250 |
40 |
1.8/1500 |
1.06 |
0.31 |
0.040 |
150 |
10-20 |
C3/C4/C9/C17 |
|
ZP600A-B |
200-1000 |
600 |
122 |
8.4 |
350 |
40 |
1.8/1800 |
0.97 |
0.27 |
0.033 |
150 |
10-20 |
C17 |
|
ZP800A-B |
200-1000 |
800 |
116 |
11 |
600 |
40 |
2.0/2400 |
0.81 |
0.23 |
0.033 |
150 |
10-20 |
C17 |
|
ZP1000A-B |
200-1000 |
1000 |
112 |
14 |
980 |
50 |
2.0/3000 |
0.86 |
0.165 |
0.030 |
150 |
15-20 |
C18 |
|
ZP1200A-B |
200-1000 |
1200 |
106 |
17 |
1500 |
60 |
2.0/3000 |
0.82 |
0.132 |
0.030 |
150 |
18-25 |
C19 |
|
ZP1600A-B |
200-1000 |
1600 |
102 |
23 |
2600 |
80 |
2.0/3000 |
0.80 |
0.14 |
0.022 |
150 |
19-26 |
C20 |
|
ZP200A-C |
1100-2000 |
200 |
129 |
2.8 |
40 |
16 |
1.8/600 |
0.70 |
0.86 |
0.090 |
150 |
3.3-5.5 |
C7/C2 |
|
ZP300A-C |
1100-2000 |
300 |
123 |
4.2 |
90 |
30 |
1.8/900 |
1.08 |
0.35 |
0.065 |
150 |
5.3-12 |
C8/C3 |
|
ZP400A-C |
1100-2000 |
400 |
119 |
5.6 |
160 |
30 |
1.8/1200 |
1.06 |
0.35 |
0.055 |
150 |
5.3-10 |
C8/C4 |
|
ZP500A-C |
1100-2000 |
500 |
120 |
8.4 |
350 |
40 |
1.8/1500 |
1.05 |
0.30 |
0.033 |
150 |
10-20 |
C17/C4 |
|
ZP600A-C |
1100-2000 |
600 |
120 |
8.4 |
350 |
40 |
1.8/1800 |
1.05 |
0.30 |
0.033 |
150 |
10-20 |
C17/C4 |
|
ZP800A-C |
1100-2000 |
800 |
112 |
11 |
600 |
40 |
2.0/2400 |
0.85 |
0.29 |
0.033 |
150 |
10-20 |
C18/C5 |
|
ZP1000A-C |
1100-2000 |
1000 |
108 |
14 |
980 |
50 |
2.0/3000 |
0.90 |
0.204 |
0.030 |
150 |
15-20 |
C19/C6 |
|
ZP1200A-C |
1100-2000 |
1200 |
114 |
17 |
1500 |
80 |
2.0/3000 |
0.89 |
0.15 |
0.022 |
150 |
19-26 |
C20 |
|
ZP2000A-C |
1100-2000 |
2000 |
101 |
28 |
3900 |
120 |
2.0/4000 |
0.273 |
0.10 |
0.020 |
150 |
21-30 |
C21 |
|
ZP2500A-C |
1100-2000 |
2500 |
90 |
35 |
6100 |
120 |
2.0/5000 |
0.725 |
0.11 |
0.016 |
150 |
27-34 |
C23 |
|
ZP3100A-C |
1100-2000 |
2100 |
104 |
30 |
4500 |
60 |
1.4/3000 |
0.85 |
0.10 |
0.016 |
150 |
30-40 |
C23 |
|
ZP3500A-C |
1100-2000 |
3500 |
87 |
44 |
9700 |
200 |
2.0/5000 |
0.93 |
0.08 |
0.011 |
150 |
35-47 |
C23/C24/C25 |
|
ZP4000A-C |
1100-2000 |
4000 |
94 |
50 |
12500 |
200 |
2.0/5000 |
0.76 |
0.08 |
0.009 |
150 |
70-85 |
C25/C26 |
|
ZP1000A-D |
2100-3000 |
1000 |
120 |
14 |
980 |
80 |
2.0/3000 |
0.82 |
0.22 |
0.022 |
150 |
19-26 |
C20 |
|
ZP800A-E |
3100-3800 |
800 |
123 |
11 |
600 |
80 |
2.0/2400 |
0.98 |
0.26 |
0.022 |
150 |
19-26 |
C20 |
|
ZP2100A-E |
3100-3800 |
2100 |
94 |
30 |
4500 |
60 |
1.63/3000 |
0.88 |
0.150 |
0.016 |
150 |
30-40 |
C24 |
|
ZP2500A-E |
3100-3800 |
2500 |
100 |
35 |
6100 |
200 |
2.0/5000 |
0.95 |
0.138 |
0.011 |
150 |
35-47 |
C24 |
|
ZP6300A-A |
200-400 |
6300 |
56 |
55 |
15100 |
50 |
1.25/5000 |
0.69 |
0.042 |
0.0135 |
170 |
19-26 |
C25/C26/C27 |
|
ZP5000A-B |
200-1000 |
5000 |
63 |
58 |
16800 |
100 |
1.20/5000 |
0.63 |
0.058 |
0.016 |
170 |
27-34 |
C25/C26/C27 |
|
ZP6400A-B |
200-1000 |
6400 |
88 |
60 |
18000 |
100 |
1.25/5000 |
0.70 |
0.030 |
0.011 |
150 |
35-47 |
C25/C26/C27 |
