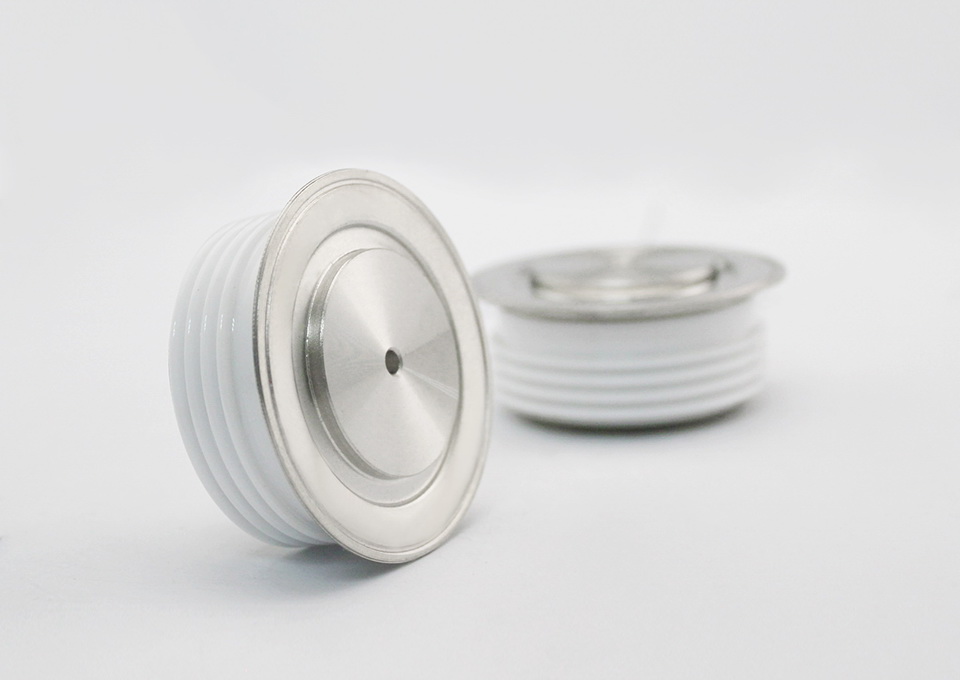

러시아어 유형 눈사태 정류관 (캡슐 버전)
특징
All diffuse techinics
Ceramic disc type seal
Middle triggr
Bifacial cooled
High current
Big power transformer
AC & DC motor control
AC & DC switch
Phase control rectification
Inverter
Welder
|
Type |
VRRM |
IRRM |
IF(AV) |
IF(RSM) |
IF(SM) |
I2t |
VFM/IFM |
TTO |
rT |
PRSM |
Tj |
Rjc |
M2 |
Wt |
Outline |
|
|
|
Tc55℃ |
Tc70℃ |
10ms |
|
25℃ |
|
|
100mks |
|
|
|
|
||
|
|
V |
mA |
A |
A |
kA |
A2S103 |
V/A |
V |
mΩ |
kW |
℃ |
℃/W |
KN |
kg |
|
|
DL123-320 |
400-1600 |
25 |
320 |
770 |
5.5 |
151 |
1.65/1000 |
0.90 |
0.830 |
16 |
-40 ~ +150 |
0.075 |
6 |
0.080 |
C8 |
|
DL133-500 |
400-1600 |
25 |
500 |
1430 |
12 |
720 |
1.50/1570 |
0.85 |
0.410 |
16 |
0.040 |
10 |
0.180 |
C30 |
|
|
DL153-800 |
400-2000 |
100 |
800 |
|
12 |
720 |
2.50/1500 |
|
|
16 |
0.020 |
24 |
0.550 |
C31 |
|
|
DL153-1000 |
400-2000 |
50 |
1250 |
2240 |
13 |
1620 |
3.00/3140 |
1.30 |
0.540 |
16 |
0.020 |
22 |
0.550 |
||
|
DL153-1250 |
1200-3200 |
50 |
1250 |
1740 |
26 |
3380 |
2.00/4000 |
1.10 |
0.350 |
16 |
0.020 |
24 |
0.550 |
||
|
DL153-1600 |
1200-3200 |
50 |
1600 |
2980 |
26 |
3380 |
2.00/5024 |
1.00 |
0.300 |
16 |
0.020 |
24 |
0.550 |
||
|
DL153-2000 |
1600-3200 |
50 |
2000 |
2650 |
30 |
4500 |
1.80/6280 |
0.90 |
0.185 |
16 |
0.020 |
24 |
0.550 |
||
|
DL173-3200 |
2400-3200 |
100 |
3250 |
5760 |
45 |
10125 |
2.2/10053 |
1.10 |
0.124 |
16 |
0.011 |
45 |
1.300 |
C25 |
|
|
DL173-4000 |
1600-2400 |
100 |
3860 |
6870 |
50 |
12500 |
2.2/12560 |
1.00 |
0.080 |
16 |
0.011 |
45 |
1.300 |
