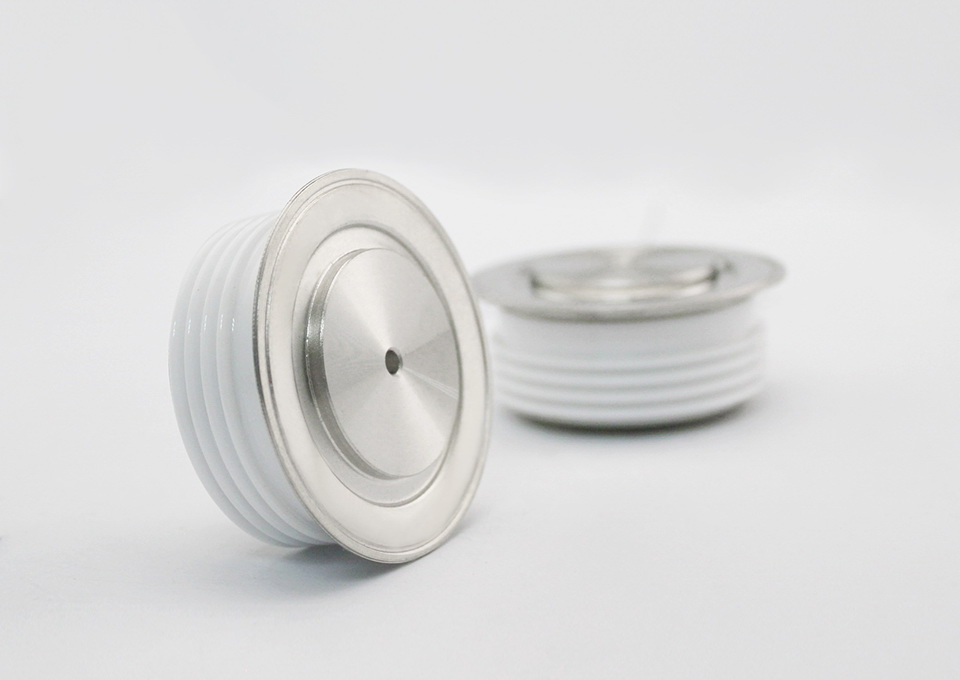

러시아어 유형 보통 정류관 (캡슐 버전)
특징
All diffuse techinics
Ceramic disc type seal
Middle triggr
Bifacial cooled
High current
Big power transformer
AC & DC motor control
AC & DC switch
Phase control rectification
Inverter
Welder
|
Type |
VRRM |
IRRM |
IF(AV) |
IF(RSM) |
IF(SM) |
VFM/IFM |
Tj |
Rjc |
M2 |
Wt |
Outline |
|
|
|
Tc55℃ |
Tc70℃ |
10ms |
25℃ |
|
|
|
|
||
|
|
V |
mA |
A |
A |
kA |
V/A |
℃ |
℃/W |
KN |
kg |
|
|
D123-200 |
400-3000 |
35 |
200 |
435 |
3.0 |
2.60/628 |
-40 ~ +150 |
0.08 |
6 |
0.091 |
C7,C8 |
|
D123-250 |
400-3000 |
35 |
250 |
550 |
3.5 |
2.45/785 |
0.08 |
6 |
0.091 |
||
|
D123-320 |
400-3000 |
35 |
320 |
650 |
4.2 |
2.25/1005 |
0.08 |
6 |
0.091 |
||
|
D123-400 |
400-3000 |
35 |
400 |
960 |
5.5 |
1.90/1255 |
0.08 |
6 |
0.091 |
||
|
D123-500 |
400-3000 |
35 |
500 |
1200 |
7.5 |
1.80/1570 |
0.08 |
6 |
0.070 |
||
|
D123-530 |
400-3000 |
35 |
530 |
1512 |
9.0 |
1.30/1978 |
0.08 |
6 |
0.070 |
||
|
D133-400 |
400-5000 |
50 |
400 |
1200 |
7 |
2.10/1256 |
0.036 |
10 |
0.180 |
C30 |
|
|
D133-500 |
400-5000 |
50 |
500 |
1770 |
11 |
1.70/1570 |
0.038 |
10 |
0.180 |
||
|
D133-630 |
400-5000 |
35 |
630 |
1970 |
11 |
1.80/1978 |
0.040 |
10 |
0.180 |
||
|
D133-800 |
400-5000 |
40 |
800 |
2520 |
12 |
1.60/2512 |
0.038 |
10 |
0.180 |
||
|
D133-1000 |
400-5000 |
40 |
1000 |
2530 |
16 |
1.55/3140 |
0.036 |
10 |
0.180 |
||
|
D143-630 |
400-5000 |
50 |
630 |
1695 |
10.5 |
2.10/1978 |
0.027 |
15 |
0.240 |
C31 |
|
|
D143-800 |
400-5000 |
50 |
800 |
2825 |
16 |
1.55/2512 |
0.027 |
15 |
0.240 |
||
|
D143-1000 |
400-5000 |
65 |
1000 |
3170 |
19 |
1.55/3140 |
0.027 |
15 |
0.240 |
||
|
D143-1250 |
400-5000 |
70 |
1250 |
3285 |
20 |
1.65/3925 |
0.027 |
15 |
0.240 |
||
|
D243-800 |
400-5000 |
45 |
800 |
1755 |
12.5 |
1.95/2512 |
0.030 |
15 |
0.240 |
||
|
D243-1000 |
400-5000 |
50 |
1000 |
2610 |
18 |
1.65/3140 |
0.030 |
15 |
0.240 |
||
|
D153-1000 |
400-5000 |
100 |
1240 |
2420 |
16 |
2.00/3140 |
0.018 |
26 |
0.550 |
C34 |
|
|
D153-1250 |
400-5000 |
100 |
1480 |
2950 |
18 |
1.95/3925 |
0.018 |
26 |
0.550 |
||
|
D153-1600 |
400-5000 |
100 |
1820 |
3455 |
22 |
1.80/5024 |
0.018 |
26 |
0.550 |
||
|
D173-2000 |
400-5000 |
150 |
2180 |
4265 |
28 |
2.00/6280 |
0.010 |
45 |
1.200 |
C25 |
|
|
D173-2500 |
400-5000 |
150 |
2800 |
5485 |
32 |
1.95/7850 |
0.010 |
45 |
1.200 |
||
|
D173-3200 |
400-5000 |
150 |
3200 |
6455 |
40 |
1.80/10048 |
0.010 |
33 |
1.200 |
||
|
D173-4000 |
400-5000 |
150 |
4660 |
9200 |
50 |
1.65/12580 |
0.011 |
45 |
1.200 |
||
|
D173-5000 |
400-5000 |
150 |
5640 |
11544 |
65 |
1.45/15700 |
0.010 |
45 |
1.200 |
