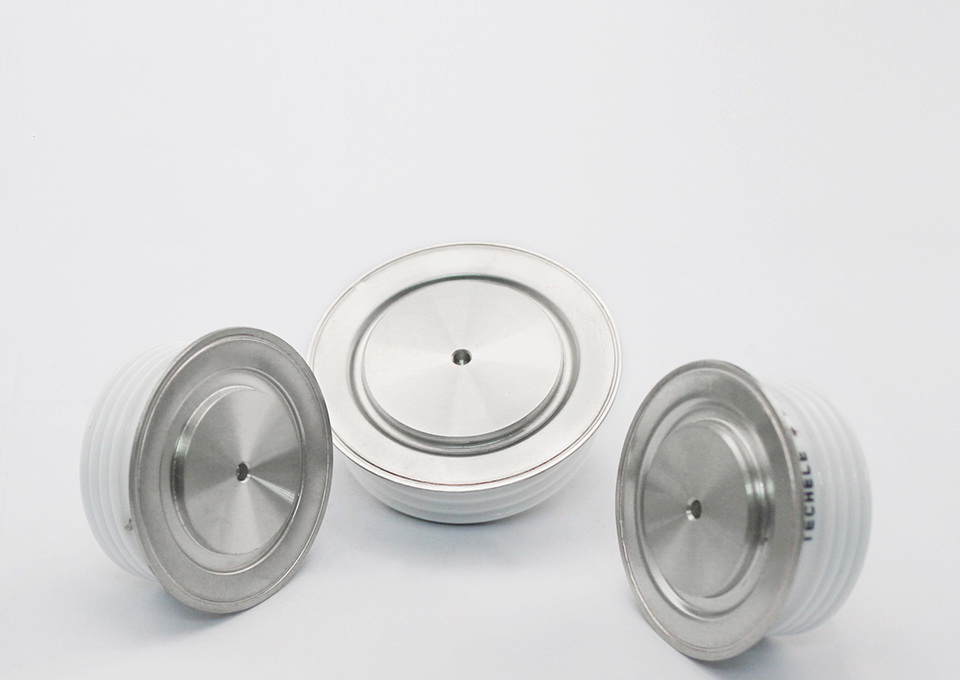

스피드 복구 다이오드 (캡슐 버전)
특징
All diffused structure
Hermetic Ceramic-Metal Disc/Capsule Version
High Surge Current Capacity
Conform to GB4939-1985
Bifacial/Double face Cooling
Off State High dv/dt capacity
용도
Motor Control & Drive
Induction Heating
UPS Power Supplier
Chopper
Welding Device
Unintermitted Current
Inverter
AC Motor Control
|
Type |
VRRM |
IF(AV) |
Qrr |
IFSM |
Trr |
IRRM |
VFM/IFM |
Rjc |
Tj |
M2 |
Outline |
Heatsink |
|
|
Tc55℃ |
|
10ms |
100℃ |
25℃ |
|
||||||
|
V |
A |
μc |
KA |
μs |
mA |
V/A |
℃/W |
℃ |
KN |
|||
|
ZK200A |
200~3000 |
200 |
70 |
2.7 |
2 |
16 |
2.2/600 |
0.090 |
-40 ~ +150 |
3.3`5.5 |
C8 |
SF12 SS11 |
|
ZK300A |
200~3000 |
300 |
100 |
4.1 |
3 |
30 |
2.2/900 |
0.065 |
5.3~10 |
C8 |
SF13 SS12 |
|
|
ZK400A |
200~3000 |
400 |
100 |
5.4 |
3 |
40 |
2.4/1200 |
0.040 |
10`20 |
C9 |
SF14 SS12 |
|
|
ZK500A |
200~3000 |
500 |
120 |
8 |
3 |
40 |
2.4/1800 |
0.033 |
10`20 |
C9 |
SF15 SS12 |
|
|
ZK800A |
200~3000 |
800 |
130 |
10 |
3 |
40 |
2.6/2400 |
0.033 |
10`20 |
C11,C19 |
SF16 SS13 |
|
|
ZK1000A |
200~3000 |
1000 |
150 |
13 |
3 |
50 |
2.6/3000 |
0.030 |
15~20 |
C19,C20 |
SF16 SS13 |
|
