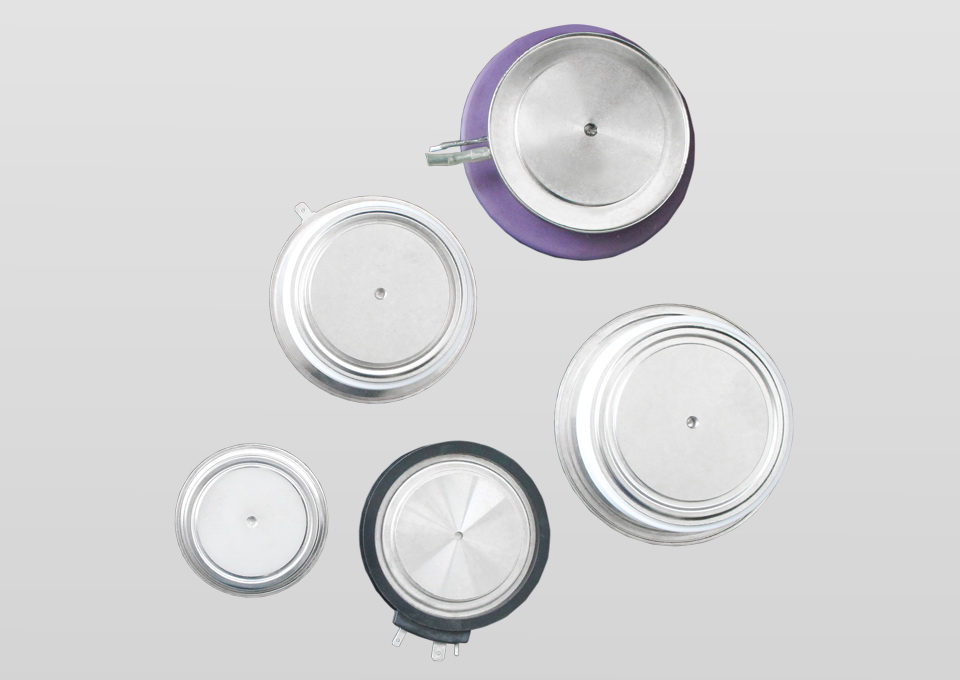

양방향 사이리스터 (캡슐 버전)
특징
All diffused technic
Central gate
Disc type ceramic casing encapsulation
Bifacial/Double faces cooling
Equal to the reverse parallel connection of two common thyristors
Under suitable gate current, forward and reverse conducting could be both achieved.
Contactless AC switches
AC power regulation and control
Thermal/Temp. control
AC switches
|
Type |
VDRM VRRM |
IT(AV) |
ITSM |
dv/dt |
di/dt |
IDRM IRRM |
IGT |
VGT |
IH |
VTM/ITM |
Rjc |
Tj |
M2 |
Outline |
Heatsink |
|
|
Tc55℃ |
10ms |
|
25℃ |
|
||||||||||
|
|
V |
A |
kA |
V/μS |
A/μS |
mA |
mA |
V |
mA |
V/A |
℃/W |
℃ |
KN |
/ |
/ |
|
KS100A |
200~2000 |
100 |
1.7 |
500 |
50 |
20 |
20~200 |
≤2.5 |
20~300 |
2.4/300 |
0.120 |
125 |
3.3~5.5 |
C2,C8 |
SF12 SS11 |
|
KS200A |
200~2000 |
200 |
1.7 |
500 |
50 |
20 |
20~200 |
≤2.5 |
20~300 |
2.4/300 |
0.120 |
3.3~5.5 |
C2,C8 |
SF12 SS11 |
|
|
KS300A |
200~2000 |
300 |
2.5 |
500 |
50 |
30 |
20~200 |
≤2.5 |
20~200 |
2.4/500 |
0.065 |
5.3~10 |
C3,C9 |
SF12 SS11 |
|
|
KS500A |
200~2000 |
500 |
4 |
500 |
50 |
40 |
20~300 |
≤2.5 |
20~300 |
2.4/700 |
0.040 |
10~20 |
C3,C4,C18 |
SF14 SS11 SF12 |
|
|
KS600A |
200~2000 |
600 |
4.2 |
500 |
50 |
40 |
20~300 |
≤2.5 |
20~300 |
2.4/900 |
0.035 |
10~20 |
C4,C18 |
SF14 SS12 |
|
|
KS800A |
200~2000 |
800 |
6.8 |
500 |
50 |
50 |
20~350 |
≤2.5 |
20~400 |
2.4/1200 |
0.035 |
15~20 |
C5,C19 |
SF14 SF12 |
|
|
KS1000A |
200~2000 |
1000 |
6.8 |
500 |
50 |
50 |
20~350 |
≤2.5 |
20~400 |
2.4/1500 |
0.035 |
20~30 |
C6,C19 |
SF15 SS13 |
|
