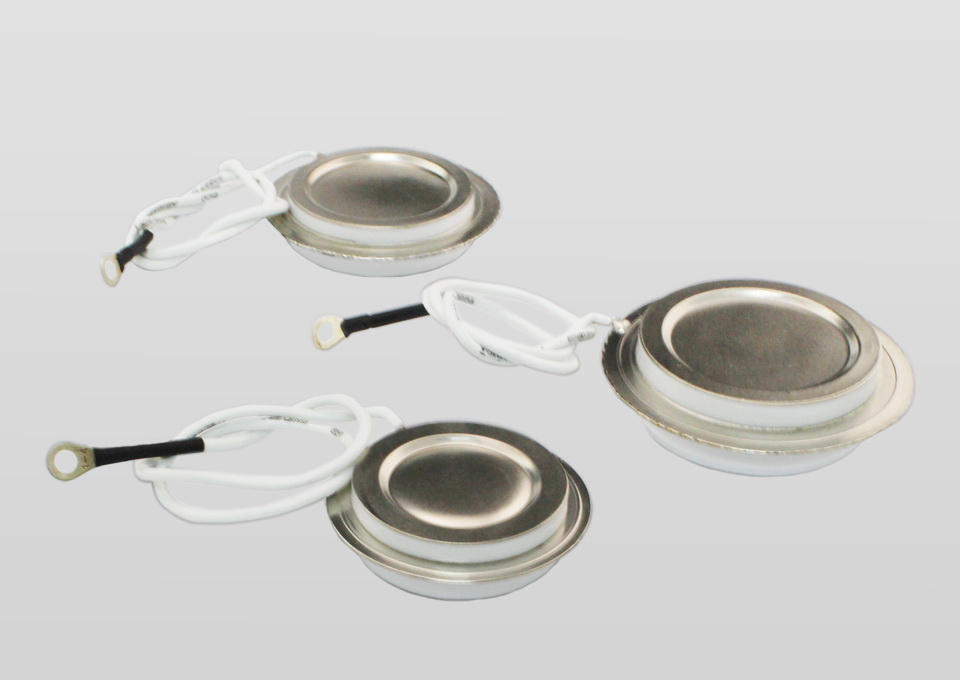

고주파 사이리스터(캡슐 버전)
특징
All diffused technic
Distributed gate lever amplifying structure
Low switching loss
Super high frequency characteristics, cater for 2.5Hz~10KHz
Super dynamic performance
Bifacial/Double faces cooling
용도
Inverter
Welder/welding devices
Chopper
Induction Heating
Various impulsive converter
|
Type |
VDRM VRRM |
IT(AV) |
Tq |
ITSM |
dv/dt |
di/dt |
IDRM IRRM |
IGT |
VGT |
IH |
VTM/ITM |
Rjc |
Tj |
M2 |
Outline |
Heatsink |
|
|
Tc55℃ |
|
10ms |
|
25℃ |
|
||||||||||
|
|
V |
A |
μS |
kA |
V/μS |
A/μS |
mA |
mA |
V |
mA |
V/A |
℃/W |
℃ |
KN |
/ |
/ |
|
KG200A |
800-1600 |
200 |
10-16 |
2.4 |
200 |
200 |
30 |
30-200 |
0.8-2.5 |
20-250 |
3.2/600 |
0.055 |
115 |
5.3-10 |
C8 |
SS11 |
|
KG300A |
800-1600 |
300 |
10-16 |
3.6 |
200 |
200 |
40 |
30-250 |
0.8-3.0 |
20-400 |
3.2/900 |
0.035 |
10-20 |
C9,C17 |
SS12 |
|
|
KG400A |
800-1600 |
400 |
10-16 |
4.8 |
200 |
200 |
40 |
30-250 |
0.8-3.0 |
20-400 |
3.2/1200 |
0.035 |
10-20 |
C11,C18 |
SS12 |
|
|
KG500A |
800-1600 |
500 |
10-16 |
6 |
200 |
200 |
50 |
30-250 |
0.8-3.0 |
20-400 |
3.2/1500 |
0.032 |
15-20 |
C11,C18 |
SS12 |
|
|
KG600A |
800-1600 |
600 |
12-18 |
7.2 |
200 |
250 |
60 |
30-250 |
0.8-3.0 |
20-400 |
3.2/1800 |
0.030 |
18-25 |
C19 |
SS13 |
|
|
KG800A |
800-1600 |
800 |
12-18 |
9.6 |
200 |
250 |
80 |
30-250 |
0.8-3.0 |
20-400 |
3.2/2400 |
0.024 |
19-26 |
C19 |
SS13 |
|
|
KG1000A |
800-1600 |
1000 |
12-18 |
12 |
200 |
250 |
100 |
30-300 |
0.8-3.0 |
20-400 |
3.2/3000 |
0.022 |
21-30 |
C20 |
SS13 |
|
|
KG1200A |
800-1600 |
1200 |
12-18 |
14 |
200 |
250 |
100 |
30-300 |
0.8-3.0 |
20-400 |
3.2/3000 |
0.022 |
21-30 |
C21 |
SS14 |
|
