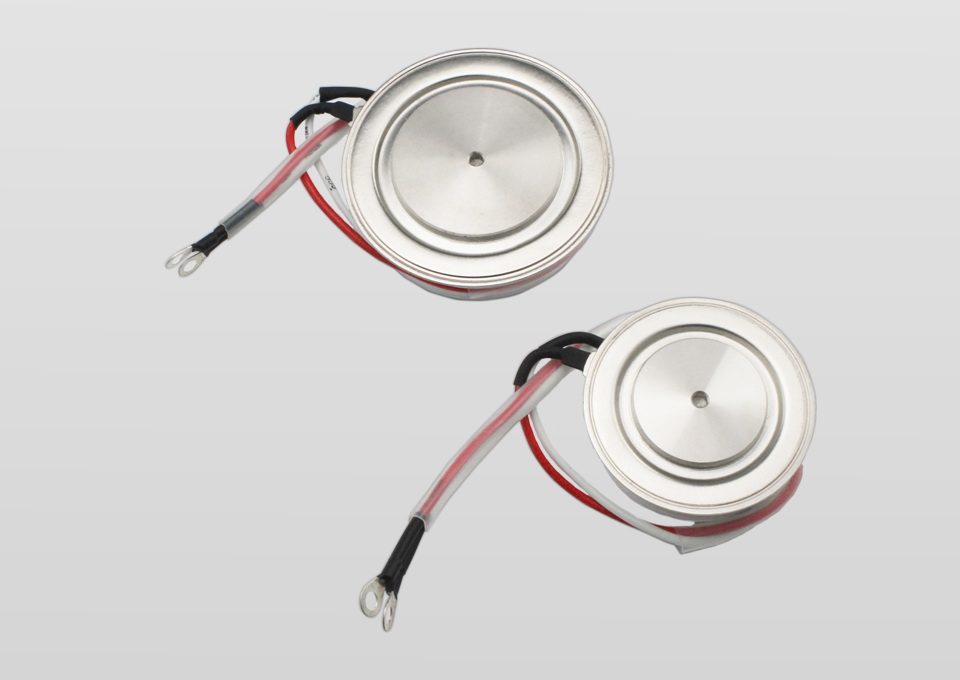

스피드 사이리스터 (캡슐 버전)
특징
All diffused technic
Distributed gate lever amplifying structure
Super dynamic characteristic
Fast switching performance
Low switching loss
Disc type ceramic casing encapsulation
Bifacial/Double faces cooling
Inverter
Chopper
Induction Heating
Various compulsive converter
Intermediate frequency power supplier
Intermediate furnace
|
Type |
VDRM VRRM |
IT(AV) |
Tq |
dv/dt |
di/dt |
IDRM IRRM |
IGT |
VGT |
IH |
VTM/ITM |
Rjc |
Tj |
M2 |
Outline |
Heatsink |
|
|
Tc55℃ |
100℃ |
|
25℃ |
|
|
|
||||||||
|
|
V |
A |
μS |
V/μS |
A/μS |
mA |
mA |
V |
mA |
V/A |
℃/W |
℃ |
KN |
/ |
/ |
|
KK200A |
600~2500 |
200 |
16~35 |
500 |
200 |
30 |
40~250 |
0.9~2.5 |
20~400 |
2.9/600 |
0.065 |
115 |
5.3~10 |
C2,C8,C16 |
SS11 |
|
KK300A |
600~2500 |
300 |
16~35 |
500 |
200 |
30 |
40~250 |
0.9~2.5 |
20~400 |
2.8/900 |
0.055 |
5.3~10 |
C3,C9,C17 |
SS12 |
|
|
KK400A |
600~2500 |
400 |
16~35 |
500 |
300 |
40 |
40~250 |
0.9~2.5 |
20~400 |
2.8/1200 |
0.040 |
10~20 |
C4,C18 |
SS12 |
|
|
KK500A |
600~2500 |
500 |
16~35 |
500 |
300 |
50 |
40~250 |
0.9~2.5 |
20~400 |
3.15/1500 |
0.035 |
15~20 |
C4,C18 |
SS12 |
|
|
KK600A |
600~2500 |
600 |
16~35 |
500 |
300 |
50 |
40~300 |
0.9~3.0 |
20~400 |
3.15/1800 |
0.032 |
15~20 |
C5,C19 |
SS12 |
|
|
KK800A |
600~2500 |
800 |
16~35 |
500 |
300 |
60 |
40~300 |
0.9~3.0 |
20~500 |
3.15/2400 |
0.030 |
18~25 |
C19 |
SS13 |
|
|
KK1000A |
600~2500 |
1000 |
16~35 |
500 |
500 |
80 |
40~300 |
0.9~3.0 |
20~500 |
3.15/3000 |
0.024 |
19~26 |
C20 |
SS13 |
|
|
KK1200A |
600~2500 |
1200 |
16~35 |
500 |
500 |
100 |
40~300 |
0.9~3.0 |
20~500 |
3.15/3000 |
0.022 |
21~30 |
C21 |
SS14 |
|
|
KK1500A |
600~2500 |
1500 |
16~35 |
500 |
500 |
120 |
40~300 |
0.9~3.5 |
20~500 |
3.15/3000 |
0.020 |
21~30 |
C21 |
SS14 |
|
|
KK1800A |
600~2500 |
1800 |
40~80 |
500 |
500 |
120 |
40~450 |
0.9~4.0 |
20~800 |
3.15/4000 |
0.017 |
27~34 |
C23 |
SS14 |
|
|
KK2000A |
600~2500 |
2000 |
40~80 |
500 |
600 |
160 |
40~450 |
0.9~4.5 |
20~800 |
3.15/4000 |
0.016 |
30~40 |
C23 |
SS14 |
|
|
KK2500A |
600~2500 |
2500 |
40~80 |
500 |
600 |
200 |
40~450 |
0.9~4.5 |
20~800 |
3.15/5000 |
0.011 |
35~47 |
C25 |
SS15 |
|
|
KK3000A |
600~2500 |
3000 |
40~80 |
500 |
600 |
250 |
40~450 |
0.9~4.5 |
20~800 |
3.15/5000 |
0.009 |
70~85 |
C25 |
SS15 |
|
