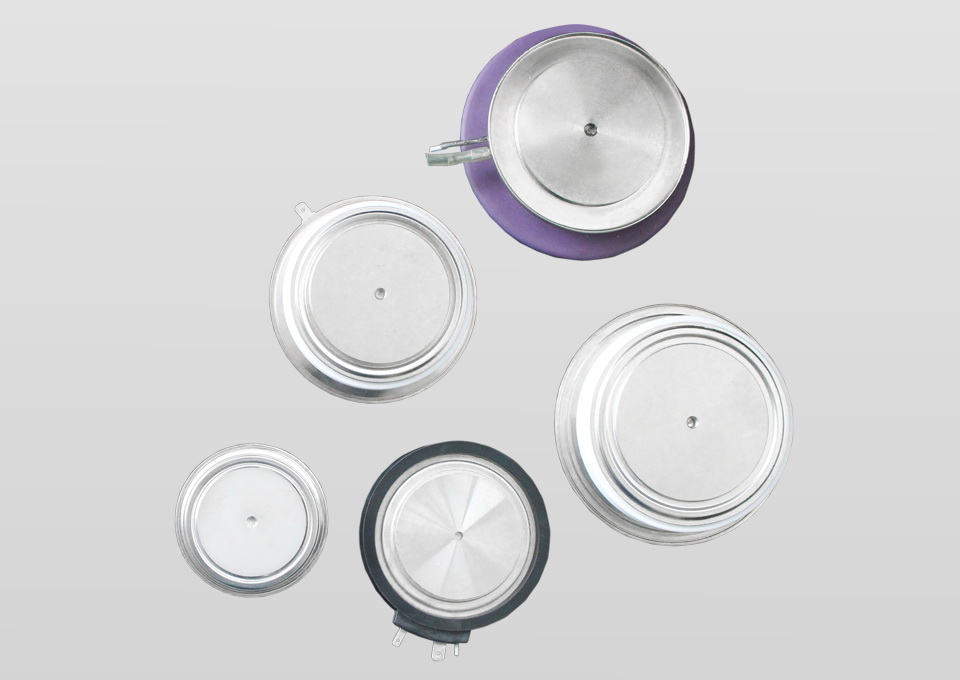

일반용 실리콘 제어(캡슐 버전)
특징
All diffused technic
Disc type ceramic casing encapsulation
Central gate amplifying structure
Bifacial/Double faces cooling
High current
Large power converter
AC/DC motor control
Phase-controlled rectifying
Active/Passive inverter
|
Type |
VDRM VRRM |
IT(AV) |
ITSM |
dv/dt |
di/dt |
IDRM IRRM |
IGT |
VGT |
IH |
VTM/ITM |
Rjc |
Tj |
M2 |
Outline |
Heatsink |
|
|
Tc55℃ |
10ms |
|
25℃ |
|
||||||||||
|
|
V |
A |
kA |
V/μS |
A/μS |
mA |
mA |
V |
mA |
V/A |
℃/W |
℃ |
KN |
/ |
/ |
|
KP200A |
200~3000 |
200 |
2.5 |
≥500 |
100 |
≤20 |
35~250 |
0.8~20 |
20~150 |
2.2/600 |
0.065 |
125 |
5.3~10 |
C2,C8,C16 |
SF12 SS11 |
|
KP300A |
200~3000 |
300 |
3.8 |
≥500 |
100 |
≤20 |
35~250 |
0.8~2.5 |
20~200 |
2.2/900 |
0.055 |
5.3~10 |
C3,C9,C17 |
SF13 SS12 |
|
|
KP400A |
200~3000 |
400 |
5 |
≥500 |
100 |
≤20 |
35~250 |
0.8~20 |
20~200 |
2.4/1200 |
0.040 |
10~20 |
C3,C9,C17 |
SF14 SS12 |
|
|
KP500A |
200~5000 |
500 |
6.4 |
≥500 |
100 |
≤20 |
35~250 |
0.8~2.5 |
20~250 |
2.4/1500 |
0.035 |
15~20 |
C4,C18 |
SF15 SS12 |
|
|
KP600A |
200~5000 |
600 |
6.4 |
≥500 |
100 |
≤20 |
35~300 |
0.8~20 |
20~250 |
1.1/1800 |
0.035 |
10~20 |
C5,C19 |
SF15 SS12 |
|
|
KP800A |
200~5000 |
800 |
10 |
≥800 |
150 |
≤30 |
40~300 |
0.8~3.0 |
20~250 |
2.2/2400 |
0.032 |
15~20 |
C5,C19 |
SF15 SS13 |
|
|
KP1000A |
200~5000 |
1000 |
13 |
≥800 |
200 |
≤30 |
40~300 |
0.8~3.0 |
20~300 |
2.4/3000 |
0.022 |
21~30 |
C6,C20 |
SF15 SS13 |
|
|
KP1200A |
200~5000 |
1200 |
15 |
≥800 |
200 |
≤30 |
40~300 |
0.8~3.0 |
20~300 |
2.4/3000 |
0.020 |
21~30 |
C21 |
SF16 SS13 |
|
|
KP1500A |
200~5000 |
1500 |
20 |
≥800 |
200 |
≤50 |
40~300 |
0.8~3.0 |
20~300 |
2.4/3000 |
0.017 |
27~34 |
C21 |
SF17 SS14 |
|
|
KP1800A |
200~5000 |
1800 |
22.5 |
≥800 |
250 |
≤50 |
40~300 |
0.8~3.0 |
20~300 |
2.4/4000 |
0.016 |
30~40 |
C23 |
SF17 SS14 |
|
|
KP2000A |
200~5000 |
2000 |
25 |
≥800 |
250 |
≤50 |
40~300 |
0.8~3.0 |
20~300 |
2.4/4000 |
0.011 |
35~47 |
C23 |
SF18 SS14 |
|
|
KP2500A |
200~5000 |
2500 |
31 |
≥800 |
250 |
≤80 |
40~300 |
0.8~3.0 |
20~300 |
2.4/5000 |
0.011 |
25~47 |
C23 |
SF18 SS14 |
|
|
KP3000A |
200~5000 |
3000 |
38 |
≥800 |
250 |
≤80 |
40~300 |
0.8~3.0 |
20~300 |
2.4~5000 |
0.011 |
35~47 |
C25 |
SF18 SS15 |
|
|
KP5000A |
200~5000 |
3500 |
44 |
≥800 |
250 |
≤80 |
40~300 |
0.8~3.0 |
20~300 |
2.4~5000 |
0.01 |
70~85 |
C25,C26 |
SF18 SS15 |
|
