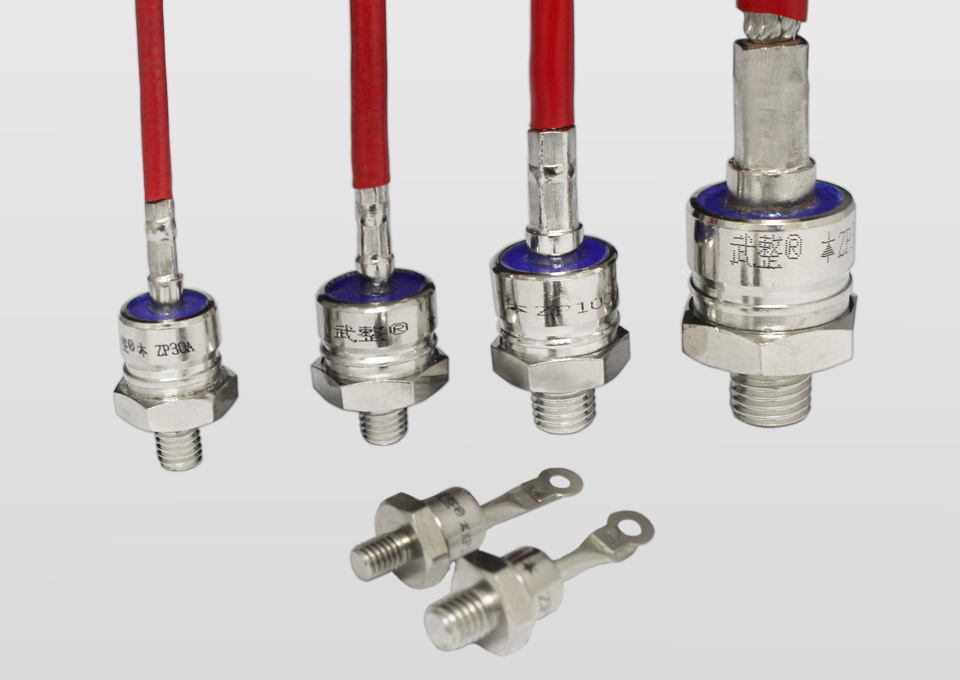

보통 정류관 （스터드 버전）
특징
IF(AV)=5-500A
VRRM=100-5000V
Metal stud structure
Hermetic ceramic-metal stud structure
Conform to national standard JB/T8949.2-1999
Capacity of supporting high surge current
Stud cathode and stud anode version
AC/DC converters
DC power supplies
Machine tool controls
|
Model |
IF(AV) |
IFRMS |
VTM |
VRRM |
IRRM |
Tj |
Rjc |
Outline |
Heatsink |
|
|
A |
A |
V |
V |
mA |
℃ |
℃/W |
|
|
|
ZP5A |
5 |
7.9 |
≤1.6 |
200～2000 |
≤2 |
-40～+250 |
≤4.0 |
A1 |
SZ13 |
|
ZP10A |
10 |
16 |
≤1.6 |
200～2000 |
≤2 |
≤2.5 |
A2 |
SZ14 |
|
|
ZP20A |
20 |
31 |
≤1.6 |
200～2000 |
≤6 |
≤1.4 |
A3C1 |
SZ15 |
|
|
ZP30A |
30 |
47 |
≤1.6 |
200～2000 |
≤6 |
≤1.0 |
C2 |
SZ16 |
|
|
ZP50A |
50 |
79 |
≤1.6 |
200～2000 |
≤12 |
≤0.6 |
C3G1 |
SZ16 |
|
|
ZP100A |
100 |
160 |
≤1.8 |
200～2000 |
≤12 |
≤0.3 |
C4G2 |
SL17 |
|
|
ZP200A |
200 |
310 |
≤1.8 |
200～3000 |
≤12 |
≤0.2 |
C5G3 |
SL18 |
|
|
ZP300A |
300 |
470 |
≤1.8 |
200～3000 |
≤15 |
≤0.11 |
C6G4 |
SL18 19 |
|
|
ZP500A |
500 |
630 |
≤1.8 |
200～5000 |
≤15 |
≤0.068 |
-40～150 |
C7G8 |
SL20 |
