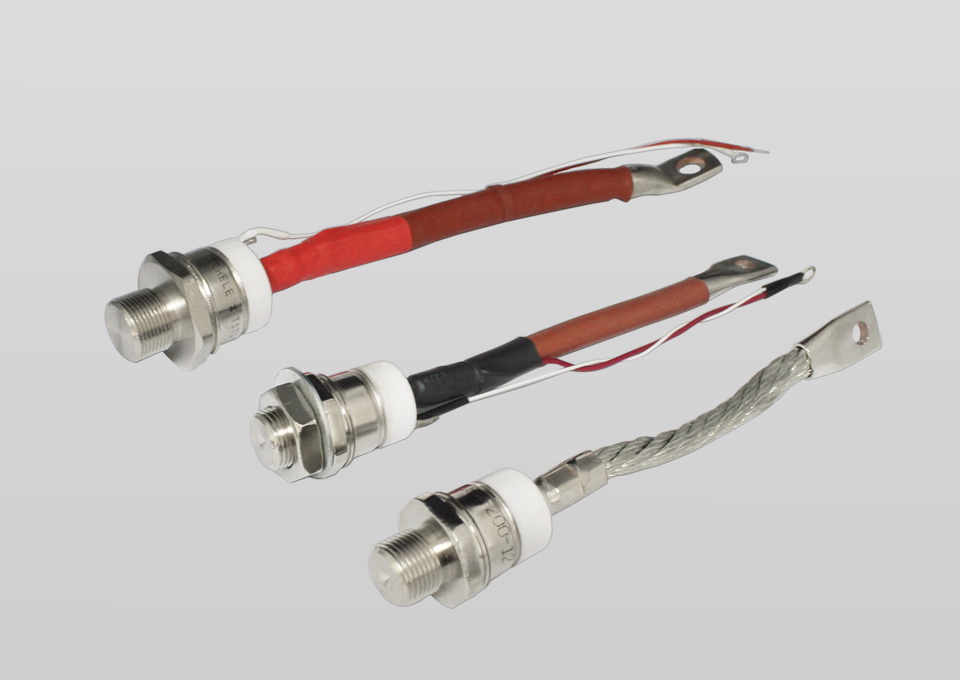

러시아어 유형 스피드 사이리스터 (스터드 버전)
특징
High surge current capability
Stud cathode and stud version
Wide current range
Inch device version available
Battery charges
Conerters
Power supplies
Machine tool controls
Welder
|
Type |
VRRM |
IRRM |
IT(AV) |
IT(RSM) |
IT(SM) |
VTM/ITM |
di/dt |
dv/dt |
VGT |
IGT |
IH |
Tj |
Rjc |
Tq |
M2 |
Wt |
Outline |
|
|
|
Tc55℃ |
|
10ms |
25℃ |
|
|
|
|
|
|
|
|
|
|
||
|
|
V |
mA |
A |
A |
kA |
V/A |
A/μS |
V/μS |
V |
mA |
mA |
℃ |
℃/W |
μS |
N/m |
Kg |
|
|
TB212-10 |
400-1400 |
10 |
10 |
16 |
0.15 |
2.2/31 |
200 |
100-1000 |
2.0 |
100 |
5-50 |
-40 ~ +125 |
1.50 |
12.5, 20, 25, 32 |
0.9-1.1 |
0.006 |
RST1 |
|
TB222-16 |
400-1400 |
12 |
16 |
25 |
0.30 |
2.2/50 |
200 |
100-1000 |
2.0 |
120 |
5-50 |
0.90 |
12.5, 20, 25, 32 |
1.5-1.7 |
0.015 |
RST2 |
|
|
TB222-20 |
400-1400 |
12 |
20 |
31 |
0.35 |
2.2/62 |
200 |
100-1000 |
2.0 |
120 |
5-50 |
0.80 |
12.5, 20, 25, 32 |
1.5-1.7 |
0.015 |
RST2 |
|
|
TB232-25 |
400-1400 |
15 |
25 |
39 |
0.50 |
2.2/78 |
200 |
100-1000 |
2.5 |
170 |
5-100 |
0.82 |
12.5, 20, 25, 32 |
5.0-8.2 |
0.023 |
RST3 |
|
|
TB232-32 |
400-1400 |
15 |
32 |
50 |
0.60 |
2.2/99 |
200 |
100-1000 |
2.5 |
170 |
5-100 |
0.62 |
12.5, 20, 25, 32 |
5.0-6.2 |
0.023 |
RST3 |
|
|
TB232-40 |
400-1400 |
15 |
40 |
62 |
0.75 |
2.2/125 |
200 |
100-1000 |
2.5 |
170 |
5-100 |
0.50 |
12.5, 20, 25, 32 |
5.0-6.2 |
0.023 |
RST3 |
|
|
TB242-50 |
400-1400 |
20 |
50 |
78 |
1.00 |
2.2/157 |
200 |
100-1000 |
3.0 |
200 |
5-100 |
0.40 |
12.5, 20, 25, 32 |
9.0-1.1 |
0.050 |
RST4 |
|
|
TB242-63 |
400-1400 |
20 |
63 |
98 |
1.10 |
2.2/198 |
200 |
100-1000 |
3.0 |
200 |
5-100 |
0.30 |
12.5, 20, 25, 32 |
9.0-1.1 |
0.050 |
RST4 |
|
|
TB151-80 |
500-1600 |
20 |
80 |
126 |
1.6 |
2.2/250 |
500 |
500-1000 |
3.0 |
250 |
5-200 |
0.25 |
20, 25, 32, 40 |
10-20 |
0.165 |
RST5 |
|
|
TB151-100 |
500-1600 |
20 |
100 |
157 |
2.0 |
1.8/314 |
500 |
500-1000 |
2.5 |
250 |
5-200 |
0.25 |
20, 25, 32, 40 |
10-20 |
0.165 |
RST5 |
|
|
TB161-125 |
500-1600 |
25 |
125 |
198 |
3.5 |
2.2/390 |
500 |
500-1000 |
2.5 |
250 |
5-200 |
0.15 |
20, 25, 32, 40 |
20-30 |
0.250 |
RST6 |
|
|
TB161-160 |
500-1600 |
25 |
160 |
250 |
4.0 |
1.8/500 |
500 |
500-1000 |
2.5 |
250 |
5-200 |
0.15 |
20, 25, 32, 40 |
20-30 |
0.250 |
RST6 |
|
|
TB171-200 |
500-1600 |
35 |
200 |
314 |
6.0 |
2.2/630 |
500 |
500-1000 |
3.5 |
250 |
5-200 |
0.10 |
20, 25, 32, 40 |
25-36 |
0.440 |
RST7 |
|
|
TB171-250 |
500-1600 |
35 |
250 |
302 |
8.0 |
1.8/785 |
500 |
500-1000 |
3.5 |
250 |
5-200 |
0.10 |
20, 25, 32, 40 |
25-35 |
0.440 |
RST7 |
|
|
TB171-320 |
500-1600 |
35 |
320 |
390 |
8.0 |
2.2/900 |
500 |
500-1000 |
3.5 |
250 |
5-200 |
0.10 |
20, 25, 32, 40 |
25-35 |
0.440 |
RST7 |
