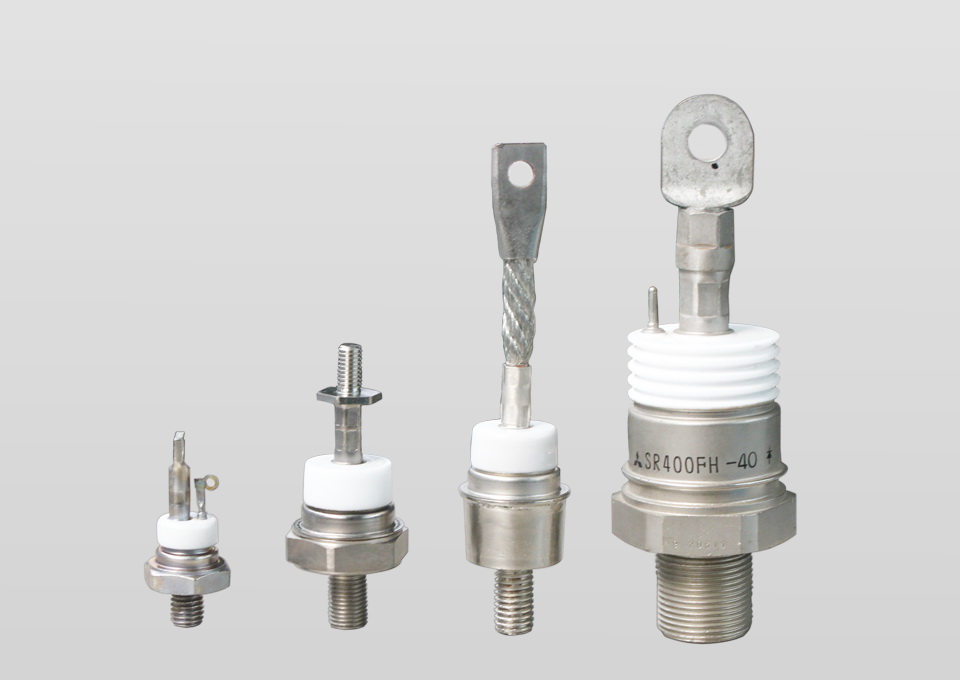

스피드 사이리스터 （스터드 버전）
특징
Hermetic metal case with ceramic/glass insulator
Stud cathode and stud anode version
High surge current capability
Wide current range
Low on-state and switching losses
High dynamic characteristics
Inverter
UPS power supply
Industrial heating control
|
Model |
VDRMVRRM |
IT(AV) |
tq |
dv/dt |
di/dt |
IDRMIRRM |
IGT |
VGT |
IH |
VTM/ITM |
RTH（j-h）s |
Tjm |
Outline
|
Heatsink |
|
|
THS55℃ |
100℃ |
|
|
|
25℃ |
|
|
||||||
|
|
V |
A |
µs |
V/µs |
A/µs |
mA |
mA |
V |
mA |
V/A |
℃/W |
℃ |
/ |
/ |
|
KK5A |
600-2000 |
5 |
15-30 |
500 |
100 |
15 |
5-100 |
0.9-2.5 |
10-100 |
2/15 |
1.5 |
115 |
B1 |
SZ13 |
|
KK20A |
600-2000 |
20 |
15-30 |
500 |
100 |
15 |
10-100 |
0.9-2.5 |
10-100 |
2.5/60 |
1 |
115 |
B3 |
SZ15 |
|
KK50A |
600-2000 |
50 |
15-30 |
500 |
100 |
20 |
20-150 |
0.9-2.5 |
10-150 |
2.7/150 |
0.85 |
115 |
D3 |
SZ16 |
|
KK100A |
600-2000 |
100 |
15-30 |
500 |
200 |
25 |
40-200 |
0.9-2.5 |
10-150 |
2.7/300 |
0.85 |
115 |
D4 |
SL17 |
