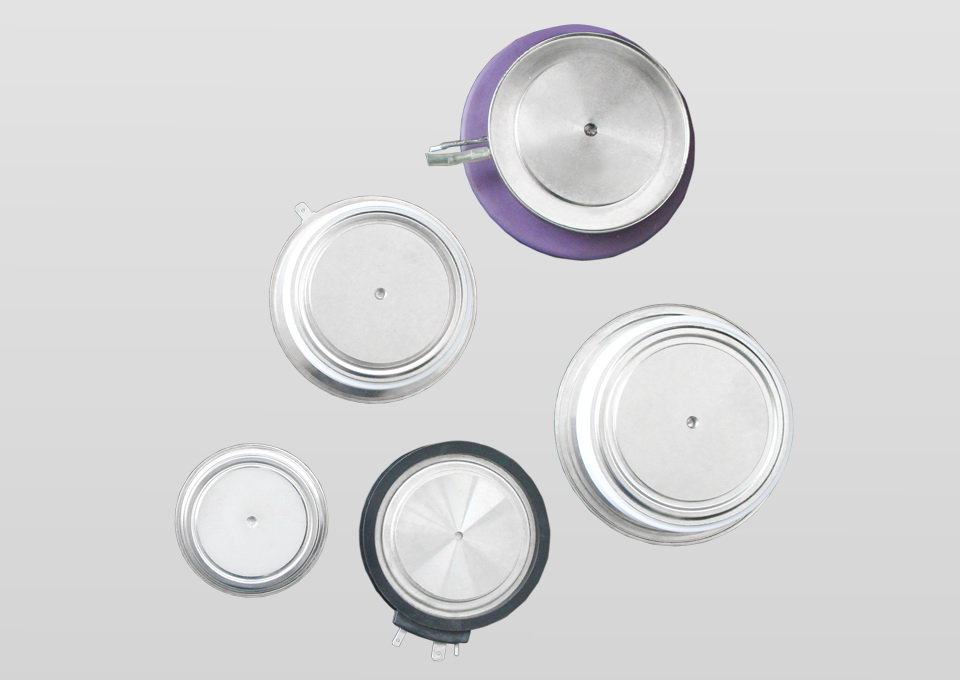

Tipo rusa tiristores rápidos(Plana de versión)
Caracteristicas
Todas las técnicas difusasTipo de sello del disco de cerámica
gatillo Medio
bifacial enfría
Alta corriente
Aplicaciones Típicas
Transformador de potencia grandeControl de motores AC y DC
Interruptor de AC & DC
Control de fase de rectificación
Inversor
Soldador
|
Type |
VRRM |
IRRM |
IT(AV) |
IT(RSM) |
IT(SM) |
VTM/ITM |
di/dt |
dv/dt |
VGT |
IGT |
IH |
Tj |
Rjc |
Tq |
M2 |
Wt |
Outline |
|
|
|
Tc55℃ |
Tc70℃ |
10ms |
25℃ |
|
|
25℃ |
|
|
|
|
|
||||
|
|
V |
mA |
A |
A |
kA |
V/A |
A/μS |
V/μS |
V |
mA |
mA |
℃ |
℃/W |
μS |
KN |
kg |
|
|
TB323-400 |
300-1400 |
40 |
400 |
628 |
6.5 |
2.7/1250 |
500 |
500-1000 |
3.5 |
300 |
≤200 |
-40 ~ +125 |
0.035 |
12.5,16,32,40 |
10 |
0.10 |
C30 |
|
TB333-500 |
300-1400 |
40 |
500 |
785 |
7.5 |
2.2/1570 |
500 |
500-1000 |
3.5 |
300 |
≤200 |
0.035 |
16,20,25,32,40 |
10 |
0.18 |
||
|
TB343-500 |
500-1000 |
50 |
500 |
785 |
9.0 |
2.6/1570 |
500 |
500-1000 |
3.5 |
300 |
≤200 |
0.028 |
25,2,40 |
15 |
0.16 |
C31 |
|
|
TB143-630 |
500-1400 |
50 |
630 |
990 |
10.5 |
2.1/2000 |
500 |
500-1000 |
3.5 |
300 |
≤300 |
0.028 |
25,32,40,50 |
15 |
0.16 |
||
|
TB153-630 |
600-1400 |
100 |
630 |
990 |
1.5 |
2.4/2000 |
630 |
1000-1600 |
3.5 |
400 |
≤300 |
0.021 |
20,25,32,40,50 |
24 |
0.55 |
C32 |
|
|
TB453-800 |
600-1400 |
100 |
800 |
1250 |
15.0 |
2.3/2500 |
630 |
1000-1600 |
3.5 |
400 |
≤300 |
0.021 |
25,32,40,50,63 |
24 |
0.55 |
||
|
TB143-500 |
1400-2400 |
70 |
500 |
800 |
9.0 |
2.5/1570 |
500 |
500-1000 |
2.5 |
300 |
≤200 |
0.035 |
25,32,40,50,63 |
15 |
0.24 |
C31 |
|
|
TB553-800 |
1400-2400 |
120 |
800 |
1250 |
17.0 |
2.8/2500 |
630 |
500-1000 |
2.5 |
400 |
≤400 |
0.021 |
25,32,40,50,63 |
24 |
0.55 |
C34 |
|
|
TB453-1000 |
600-1400 |
100 |
1000 |
1600 |
16.0 |
2.5/3140 |
630 |
1000-1600 |
3.5 |
400 |
≤400 |
0.021 |
40,50,63, |
24 |
0.55 |
||
|
TB273-2000 |
1400-2400 |
120 |
2000 |
3200 |
40.0 |
1.85/6280 |
1000 |
500-1000 |
5.0 |
400 |
≤400 |
0.011 |
40,50,63 |
45 |
1.20 |
C25 |
|
