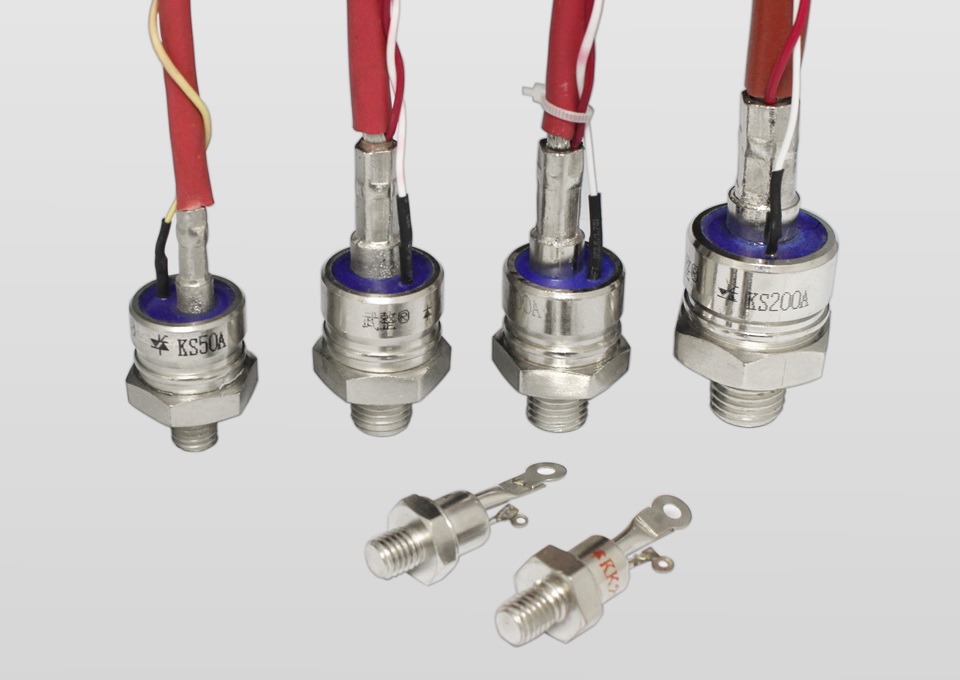

Tiristores rápidos (Stud versión)
Características
Todo técnica difusa
Estructura de palanca de amplificación puerta distribuido
Característico dinámico estupendo
El rendimiento de conmutación rápida
La pérdida de carga reducida
Tipo de disco encapsulación carcasa de cerámica
Bifacial / Doble enfrenta refrigeración
Aplicaciones Típicas
Inversor
Helicóptero
Calentamiento por inducción
Conversor compulsivo Varios
Proveedor de energía de frecuencia intermedia
Horno intermedio
|
Model |
IT(AV) |
VTM/ITM |
IT(RMS) |
VRRM |
IRRM |
Tq |
IGT |
VGT |
IH |
IL |
dv/dt |
di/dt |
Tj |
Rjc |
M2 |
Wt |
Outline |
|
|
Temp. |
THS55℃ |
25℃ |
/ |
|
||||||||||||||
|
IU |
A |
V |
A |
A |
V |
mA |
μs |
mA |
V |
mA |
mA |
V/μs |
A/μs |
℃ |
℃/W |
N/m |
Kg |
/ |
|
K10RIA |
10 |
2.35 |
30 |
16 |
200-1200 |
≤10 |
10`20 |
10-100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
-40
~
+125 |
≤1.8 |
≤2.0 |
0.016 |
TO-48 |
|
K16RIA |
16 |
2.35 |
48 |
25 |
200-1200 |
≤10 |
10`20 |
10-100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤1.5 |
≤2.0 |
0.016 |
TO-48 |
|
|
K25RIA |
25 |
2.50 |
75 |
40 |
200-1200 |
≤12 |
10`20 |
50-100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤1.0 |
≤2.0 |
0.022 |
TO-65 |
|
|
K40RIA |
40 |
2.55 |
120 |
64 |
200-1200 |
≤12 |
10`20 |
50-100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤1.0 |
≤2.0 |
0.022 |
TO-65 |
|
|
K50RIA |
50 |
2.50 |
150 |
80 |
200-1200 |
≤12 |
10`20 |
50-100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤0.8 |
≤2.0 |
0.022 |
TO-65 |
|
|
KST80S |
80 |
2.30 |
240 |
128 |
200-1600 |
≤15 |
15`25 |
50-100 |
≤2.5 |
≤200 |
≤400 |
≥800 |
≥100 |
≤0.6 |
≤12 |
0.160 |
TO-94 |
|
|
KST100S |
100 |
2.25 |
300 |
160 |
200-1600 |
≤15 |
15`25 |
50-100 |
≤2.5 |
≤200 |
≤400 |
≥800 |
≥100 |
≤0.6 |
≤12 |
0.160 |
TO-94 |
|
|
KST150S |
150 |
2.35 |
450 |
240 |
200-1800 |
≤20 |
15`30 |
50-100 |
≤2.5 |
≤200 |
≤400 |
≥800 |
≥100 |
≤0.5 |
≤25 |
0.280 |
TO-93 |
|
|
KST180S |
180 |
2.40 |
600 |
320 |
200-1800 |
≤20 |
15`30 |
50-100 |
≤2.5 |
≤400 |
≤600 |
≥800 |
≥100 |
≤0.45 |
≤25 |
0.280 |
TO-93 |
|
|
KST230S |
230 |
2.45 |
700 |
400 |
200-1800 |
≤25 |
15`30 |
50-100 |
≤2.5 |
≤400 |
≤600 |
≥800 |
≥100 |
≤0.3 |
≤30 |
0.580 |
TO-118 |
|
|
KST300S |
300 |
2.50 |
900 |
480 |
200-1800 |
≤40 |
15`30 |
50-100 |
≤2.5 |
≤400 |
≤600 |
≥800 |
≥100 |
≤0.25 |
≤30 |
0.580 |
TO-118 |
|
