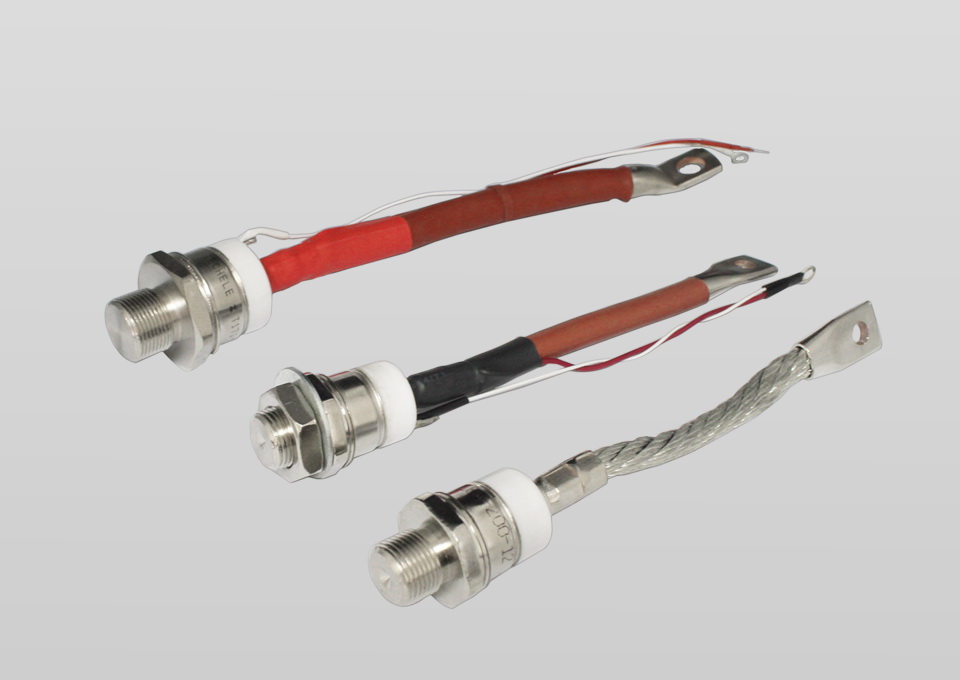

Tiristores del control de fase (Stud versión)
Caracteristicas
Alta capacidad de corriente
Características dinámicas de excelentesCapacidades de sobretensiones superiores
Paquete estándar
Versión del dispositivo métrica disponiblesAplicaciones típicas
Aplicaciones de control de fase en convertidores
Circuitos de iluminaciónCarga la batería
Fuentes de alimentación reguladas y circuito de control de temperatura y velocidad
Se puede suministrar alta fiabilidad para cumplir con estrictas militar, aeroespacial y otros requisitos
Fuentes de alimentación & controles de motor
|
Model |
IT(AV) |
VTM/ITM |
IT(RMS) |
VRRM |
IRRM |
IGT |
VGT |
IH |
IL |
dv/dt |
di/dt |
Tj |
Rjc |
M2 |
Wt |
Outline |
|
|
Temp. |
THS 55℃ |
25℃ |
/ |
/ |
|||||||||||||
|
|
A |
V |
A |
A |
V |
mA |
mA |
V |
mA |
mA |
V/μs |
A/μs |
℃ |
℃/W |
N/m |
Kg |
|
|
10RIA |
10 |
1.75 |
30 |
16 |
200-1200 |
≤10 |
10~100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
-40
~
+125 |
≤1.8 |
≤2.0 |
0.016 |
TO-48 |
|
16RIA |
16 |
1.75 |
48 |
25 |
200-1200 |
≤10 |
10~100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤1.5 |
≤2.0 |
0.016 |
TO-48 |
|
|
25RIA |
25 |
1.70 |
75 |
40 |
200-1200 |
≤10 |
10~100 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤1.0 |
≤2.0 |
0.016 |
TO-48 |
|
|
40RIA |
40 |
1.95 |
120 |
64 |
200-1200 |
≤12 |
50~200 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤1.0 |
≤2.0 |
0.022 |
TO-65 |
|
|
50RIA |
50 |
1.90 |
150 |
80 |
200-1200 |
≤12 |
50~200 |
≤2.5 |
≤150 |
≤200 |
≥500 |
≥100 |
≤0.8 |
≤2.0 |
0.022 |
TO-65 |
|
|
ST80S |
80 |
1.6 |
240 |
128 |
200-1600 |
≤15 |
50~200 |
≤2.5 |
≤200 |
≤400 |
≥800 |
≥100 |
≤0.6 |
≤12 |
0.160 |
TO-94 |
|
|
ST100S |
100 |
1.6 |
300 |
160 |
200-1600 |
≤15 |
50~200 |
≤2.5 |
≤200 |
≤400 |
≥800 |
≥100 |
≤0.6 |
≤12 |
0.160 |
TO-94 |
|
|
ST130S |
130 |
1.55 |
390 |
208 |
200-1600 |
≤15 |
50~200 |
≤2.5 |
≤200 |
≤400 |
≥800 |
≥100 |
≤0.55 |
≤12 |
0.160 |
TO-94 |
|
|
ST150S |
150 |
1.6 |
450 |
240 |
200-1600 |
≤20 |
50~200 |
≤2.5 |
≤200 |
≤400 |
≥800 |
≥100 |
≤0.5 |
≤12 |
0.280 |
TO-94 |
|
|
ST180S |
180 |
1.75 |
600 |
320 |
200-1800 |
≤20 |
50~200 |
≤2.5 |
≤400 |
≤600 |
≥800 |
≥100 |
≤0.4 |
≤25 |
0.280 |
TO-93 |
|
|
ST230S |
250 |
1.75 |
750 |
400 |
200-1800 |
≤20 |
50~200 |
≤2.5 |
≤400 |
≤600 |
≥800 |
≥100 |
≤0.2 |
≤25 |
0.280 |
TO-93 |
|
|
ST280S |
280 |
1.70 |
840 |
450 |
200-1800 |
≤25 |
50~200 |
≤2.5 |
≤400 |
≤600 |
≥800 |
≥100 |
≤0.15 |
≤25 |
0.280 |
TO-93 |
|
|
ST300S |
300 |
1.5 |
900 |
480 |
200-2400 |
≤40 |
50~200 |
≤2.5 |
≤600 |
≤1000 |
≥800 |
≥100 |
≤0.10 |
≤30 |
0.580 |
TO-118 |
|
|
ST330S |
330 |
1.55 |
990 |
530 |
200-2400 |
≤40 |
50~200 |
≤2.5 |
≤600 |
≤1000 |
≥800 |
≥100 |
≤0.07 |
≤30 |
0.580 |
TO-118 |
|
|
ST350S |
350 |
1.6 |
1050 |
560 |
200-2400 |
≤40 |
50~200 |
≤2.5 |
≤600 |
≤1000 |
≥800 |
≥100 |
≤0.06 |
≤30 |
0.580 |
TO-118 |
|
