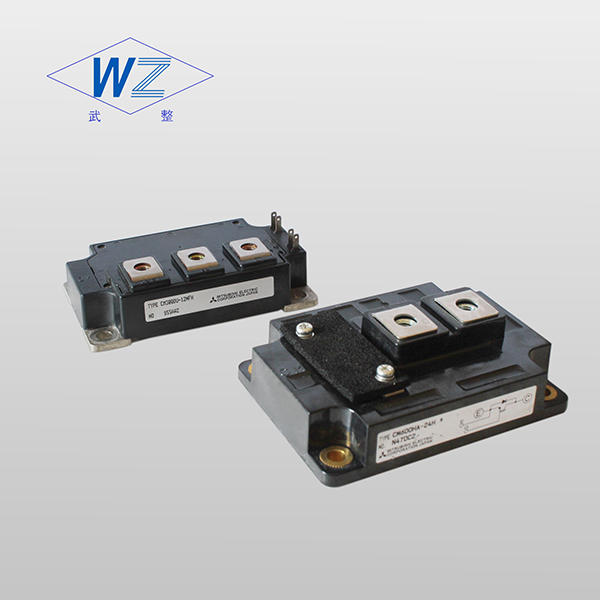

IGBT Modules

3代（前期）

3代（后期）

4代

5代

6代

H series

U series
KA series

F series
DUS series(High frequency)

NF series

NX series
A series
Mega Power Dual
NFH series( High frequency )

S series MPD type

S series NX type

S series std type (A/NF series IGBT）

S1 series NX type

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM400HU-24H

1200

400

2500

2100

2.9

2.5

H

U series

WZCM600HU-12H

600

600

2500

1560

2.4

2.0

H

U series

WZCM600HU-24H

1200

600

2500

3100

2.9

2.5

H

U series

WZCM50E3U-24H

1200

50

2500

400

2.9

2.5

E3

U series

WZCM75E3U-12H

600

75

2500

310

2.4

2.0

E3

U series

WZCM75E3U-24H

1200

75

2500

600

2.9

2.5

E3

U series

WZCM100E3U-12H

600

100

2500

400

2.4

2.0

E3

U series

WZCM100E3U-24H

1200

100

2500

650

2.9

2.5

E3

U series

WZCM150E3U-12H

600

150

2500

600

2.4

2.0

E3

U series

WZCM150E3U-24H

1200

150

2500

890

2.9

2.5

E3

U series

WZCM200E3U-12H

600

200

2500

650

2.4

2.0

E3

U series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM100DU-34KA

1700

100

3500

890

3.2

3.3

D

KA series

WZCM150DU-34KA

1700

150

3500

1100

3.2

3.3

D

KA series

WZCM200DU-34KA

1700

200

3500

1100

3.2

3.3

D

KA series

WZCM300DU-34KA

1700

300

3500

1500

3.2

3.3

D

KA series

WZCM400DU-34KA

1700

400

3500

1950

3.2

3.3

D

KA series

WZCM50DU-24H

1200

50

2500

400

2.9

2.5

D

U series

WZCM75DU-12H

600

75

2500

310

2.4

2.0

D

U series

WZCM75DU-24H

1200

75

2500

600

2.9

2.5

D

U series

WZCM100DU-12H

600

100

2500

400

2.4

2.0

D

U series

WZCM100DU-24H

1200

100

2500

650

2.9

2.5

D

U series

WZCM150DU-12H

600

150

2500

600

2.4

2.0

D

U series

WZCM150DU-24H

1200

150

2500

890

2.9

2.5

D

U series

WZCM200DU-12H

600

200

2500

650

2.4

2.0

D

U series

WZCM200DU-24H

1200

200

2500

1130

2.9

2.5

D

U series

WZCM300DU-12H

600

300

2500

890

2.4

2.0

D

U series

WZCM300DU-24H

1200

300

2500

1130

2.9

2.5

D

U series

WZCM400DU-12H

600

400

2500

1130

2.4

2.0

D

U series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM75BU-12H

600

75

2500

310

2.4

2.0

B

U series

WZCM100BU-12H

600

100

2500

400

2.4

2.0

B

U series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM50TU-34KA

1700

50

3500

600

3.2

3.3

T

KA series

WZCM50TU-24H

1200

50

2500

400

2.9

2.5

T

U series

WZCM75TU-12H

600

75

2500

310

2.4

2.0

T

U series

WZCM75TU-24H

1200

75

2500

600

2.9

2.5

T

U series

WZCM100TU-12H

600

100

2500

400

2.4

2.0

T

U series

WZCM100TU-24H

1200

100

2500

650

2.9

2.5

T

U series

WZCM150TU-12H

600

150

2500

600

2.4

2.0

T

U series

WZCM200TU-12H

600

200

2500

650

2.4

2.0

T

U series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM400HU-24F

1200

400

2500

1600

1.8

2.3

H

F series

WZCM600HU-12F

600

600

2500

1420

1.6

2.0

H

F series

WZCM600HU-24F

1200

600

2500

1900

1.8

2.3

H

F series

WZCM600HN-5F

250

600

2500

1780

1.2

1.4

H

F series

WZCM450HA-5F

250

450

2500

735

1.2

1.4

H

F series

WZCM600HA-5F

250

600

2500

960

1.2

1.4

H

F series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM50DU-24F

1200

50

2500

320

1.8

2.3

D

F series

WZCM75DU-12F

600

75

2500

290

1.6

2.0

D

F series

WZCM75DU-24F

1200

75

2500

450

1.8

2.3

D

F series

WZCM100DU-12F

600

100

2500

350

1.6

2.0

D

F series

WZCM100DU-24F

1200

100

2500

500

1.8

2.3

D

F series

WZCM150DU-12F

600

150

2500

520

1.6

2.0

D

F series

WZCM150DU-24F

1200

150

2500

600

1.8

2.3

D

F series

WZCM200DU-12F

600

200

2500

590

1.6

2.0

D

F series

WZCM200DU-24F

1200

200

2500

830

1.8

2.3

D

F series

WZCM300DU-12F

600

300

2500

780

1.6

2.0

D

F series

WZCM300DU-24F

1200

300

2500

960

1.8

2.3

D

F series

WZCM350DU-5F

250

350

2500

960

1.2

1.4

D

F series

WZCM400DU-12F

600

400

2500

960

1.6

2.0

D

F series

WZCM400DU-24F

1200

400

2500

1100

1.8

2.3

D

F series

WZCM400DU-5F

250

400

2500

890

1.2

1.4

D

F series

WZCM600DU-24F

1200

600

2500

1540

1.95

2.3

D

F series

WZCM600DU-5F

250

600

2500

1100

1.2

1.4

D

F series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM50TU-24F

1200

50

2500

320

1.8

2.3

T

F series

WZCM75TU-12F

600

75

2500

290

1.6

2.0

T

F series

WZCM75TU-24F

1200

75

2500

450

1.8

2.3

T

F series

WZCM100TU-12F

600

100

2500

350

1.6

2.0

T

F series

WZCM100TU-24F

1200

100

2500

500

1.8

2.3

T

F series

WZCM150TU-12F

600

150

2500

520

1.6

2.0

T

F series

WZCM200TU-12F

600

200

2500

590

1.6

2.0

T

F series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM400HA-24A

1200

400

2500

2350

2.1

3.0

H

A series

WZCM500HA-34A

1700

500

3500

5000

2.3

2.3

H

A series

WZCM600HA-24A

1200

600

2500

3670

2.1

3.0

H

A series

WZCM400HX-24A

1200

400

2500

2450

2.0

2.6

H

NX series

WZCM600HX-12A

600

600

2500

1890

1.7

2.0

H

NX series

WZCM600HX-24A

1200

600

2500

3785

2.0

2.6

H

NX series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM75DY-34A

1700

75

3500

780

2.2

3.0

D

A series

WZCM100DY-24A

1200

100

2500

672

2.1

3.0

D

A series

WZCM100DY-34A

1700

100

3500

960

2.2

3.0

D

A series

WZCM150DY-24A

1200

150

2500

960

2.1

3.0

D

A series

WZCM150DY-34A

1700

150

3500

1600

2.2

3.0

D

A series

WZCM200DY-24A

1200

200

2500

1340

2.1

3.0

D

A series

WZCM200DY-34A

1700

200

3500

1980

2.2

3.0

D

A series

WZCM300DY-24A

1200

300

2500

1890

2.1

3.0

D

A series

WZCM300DY-34A

1700

300

3500

2900

2.2

3.0

D

A series

WZCM400DY-24A

1200

400

2500

2710

2.1

3.0

D

A series

WZCM400DY-34A

1700

400

3500

3780

2.2

3.0

D

A series

WZCM600DY-24A

1200

600

2500

3670

2.1

3.0

D

A series

WZCM100DY-24NF

1200

100

2500

650

1.8

2.5

D

NF series

WZCM150DY-12NF

600

150

2500

590

1.7

2.0

D

NF series

WZCM150DY-24NF

1200

150

2500

780

1.8

2.5

D

NF series

WZCM200DY-12NF

600

200

2500

650

1.7

2.0

D

NF series

WZCM200DY-24NF

1200

200

2500

1130

1.8

2.5

D

NF series

WZCM300DY-12NF

600

300

2500

780

1.7

2.0

D

NF series

WZCM300DY-24NF

1200

300

2500

1130

1.8

2.5

D

NF series

WZCM400DY-12NF

600

400

2500

1130

1.7

2.0

D

NF series

WZCM400DY-24NF

1200

400

2500

1470

1.8

2.5

D

NF series

WZCM600DY-12NF

600

600

2500

1130

1.7

2.0

D

NF series

WZCM600DU-24NF

1200

600

2500

2080

1.95

2.65

D

NF series

WZCM100DU-24NFH

1200

100

2500

560

5.0

2.8

D

NFH series (DUS)

WZCM100DUS-12F

600

100

2500

445

2.7

2.6

D

NFH series (DUS)

WZCM150DU-24NFH

1200

150

2500

650

5.0

2.8

D

NFH series (DUS)

WZCM150DUS-12F

600

150

2500

655

2.7

2.6

D

NFH series (DUS)

WZCM200DU-12NFH

600

200

2500

590

2.0

2.0

D

NFH series (DUS)

WZCM200DU-24NFH

1200

200

2500

830

5.0

2.8

D

NFH series (DUS)

WZCM300DU-12NFH

600

300

2500

780

2.0

2.0

D

NFH series (DUS)

WZCM300DU-24NFH

1200

300

2500

1130

5.0

2.8

D

NFH series (DUS)

WZCM400DU-12NFH

600

400

2500

960

2.0

2.0

D

NFH series (DUS)

WZCM400DU-24NFH

1200

400

2500

1040

5.0

2.8

D

NFH series (DUS)

WZCM600DU-12NFH

600

600

2500

2350

2.7

2.6

D

NFH series (DUS)

WZCM600DU-24NFH

1200

600

2500

1550

5.0

2.8

D

NFH series (DUS)

WZCM150DX-24A

1200

150

2500

960

2.0

2.6

D

NX series

WZCM200DX-24A

1200

200

2500

1250

2.0

2.6

D

NX series

WZCM300DX-12A

600

300

2500

960

1.7

2.0

D

NX series

WZCM300DX-24A

1200

300

2500

1890

2.0

2.6

D

NX series

WZCM400DX-12A

600

400

2500

1340

1.7

2.0

D

NX series

WZCM450DX-24A

1200

450

2500

2840

2.0

2.6

D

NX series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM50TL-24NF

1200

50

2500

390

2.1

3.8

T

NF series

WZCM75TL-12NF

600

75

2500

430

1.7

2.8

T

NF series

WZCM75TL-24NF

1200

75

2500

520

2.1

3.8

T

NF series

WZCM100TL-12NF

600

100

2500

540

1.7

2.8

T

NF series

WZCM100TL-24NF

1200

100

2500

620

2.1

3.8

T

NF series

WZCM150TL-12NF

600

150

2500

730

1.7

2.8

T

NF series

WZCM150TL-24NF

1200

150

2500

890

2.1

3.8

T

NF series

WZCM200TL-12NF

600

200

2500

890

1.7

2.8

T

NF series

WZCM200TL-24NF

1200

200

2500

1160

2.1

3.8

T

NF series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM50RL-24NF

1200

50

2500

390

2.1

3.8

R

NF series

WZCM75RL-12NF

600

75

2500

430

1.7

2.8

R

NF series

WZCM75RL-24NF

1200

75

2500

520

2.1

3.8

R

NF series

WZCM100RL-12NF

600

100

2500

540

1.7

2.8

R

NF series

WZCM100RL-24NF

1200

100

2500

620

2.1

3.8

R

NF series

WZCM150RL-12NF

600

150

2500

730

1.7

2.8

R

NF series

WZCM150RL-24NF

1200

150

2500

890

2.1

3.8

R

NF series

WZCM200RL-12NF

600

200

2500

890

1.7

2.8

R

NF series

WZCM200RL-24NF

1200

200

2500

1160

2.1

3.8

R

NF series

WZCM75RX-24A

1200

75

2500

500

2.0

2.6

R

NX series

WZCM100RX-12A

600

100

2500

400

1.7

2.0

R

NX series

WZCM100RX-24A

1200

100

2500

625

2.0

2.6

R

NX series

WZCM150RX-12A

600

150

2500

520

1.7

2.0

R

NX series

WZCM200RX-12A

600

200

2500

735

1.7

2.0

R

NX series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM35MX-24A

1200

35

2500

260

2.0

2.6

M

NX series

WZCM50MX-24A

1200

50

2500

260

2.0

2.6

M

NX series

WZCM75MX-12A

600

75

2500

280

1.7

2.0

M

NX series

WZCM75MX-24A

1200

75

2500

500

2.0

2.6

M

NX series

WZCM100MX-12A

600

100

2500

400

1.7

2.0

M

NX series

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM150EXS-24S

1200

150

4000

1150

1.7

1.7

E

S series NX type

WZCM200EXS-24S

1200

200

4000

1500

1.7

1.7

E

S series NX type

WZCM200EXS-34SA

1700

200

4000

2000

1.9

4.0

E

S series NX type

WZCM300EXS-24S

1200

300

4000

2270

1.7

1.7

E

S series NX type

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM900DUC-24NF

1200

900

2500

5950

2.5

3.2

D

MPD (RoHS)

WZCM1000DUC-34NF

1700

1000

3500

8925

2.8

3.0

D

MPD (RoHS)

WZCM1400DUC-24NF

1200

1400

2500

8925

2.5

3.2

D

MPD (RoHS)

WZCM900DUC-24S

1200

900

2500

6520

1.90

2.10

D

S series MPD type

WZCM1400DUC-24S

1200

1400

4000

9375

1.90

2.10

D

S series MPD type

WZCM1000DUC-34SA

1700

1000

4000

11535

1.90

4.0

D

S series MPD type

WZCM300DY-24S

1200

300

2500

2270

1.7

1.7

D

S series std type

WZCM450DY-24S

1200

450

2500

3330

1.7

1.7

D

S series std type

WZCM600DY-24S

1200

600

2500

4050

1.7

1.7

D

S series std type

WZCM800DY-24S

1200

800

2500

5355

1.7

1.7

D

S series std type

WZCM1800DY-34S

1700

1800

4000

11535

2.60

2.40

D

S series New MPD type

WZCM2500DY-24S

1200

2500

4000

11535

2.15

2.15

D

S series New MPD type

WZCM150DX-24S

1200

150

2500

1150

1.7

1.7

D

S series NX type

WZCM150DX-34SA

1700

150

4000

1500

1.9

4.0

D

S series NX type

WZCM200DX-24S

1200

200

2500

1500

1.7

1.7

D

S series NX type

WZCM200DX-34SA

1700

200

4000

2000

1.9

4.0

D

S series NX type

WZCM225DX-24S1

1200

225

4000

1250

1.80

2.65

D

S1 series NX type

WZCM300DX-24S

1200

300

2500

2270

1.7

1.7

D

S series NX type

WZCM300DX-34SA

1700

300

4000

3000

1.90

4.0

D

S series NX type

WZCM300DX-24S1

1200

300

4000

1850

1.70

2.50

D

S1 series NX type

WZCM400C1Y-24S

1200

400

2500

2670

1.7

1.7

C1

S series std type

WZCM450DX-24S

1200

450

2500

3405

1.7

1.7

D

S series NX type

WZCM450DXL-34SA

1700

450

4000

4410

1.9

4.0

D

S series NX type

WZCM450DX-24S1

1200

450

4000

2775

1.70

2.50

D

S1 series NX type

WZCM600DXL-24S

1200

600

2500

4545

1.7

1.7

D

S series NX type

WZCM600DXL-34SA

1700

600

4000

5760

1.9

4.0

D

S series NX type

WZCM600DX-24S1

1200

600

4000

3330

1.85

2.70

D

S1 series NX type

WZCM1000DXL-24S

1200

1000

2500

7500

1.7

1.7

D

S series NX type

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM75TX-24S

1200

75

2500

600

1.7

1.7

T

S series NX type

WZCM100TX-24S

1200

100

2500

750

1.7

1.7

T

S series NX type

WZCM100TX-24S1

1200

100

4000

625

1.70

2.60

T

S1 series NX type

WZCM150TX-24S

1200

150

2500

1150

1.7

1.7

T

S series NX type

WZCM150TX-24S1

1200

150

4000

935

1.70

2.60

T

S1 series NX type

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM75RX-24S

1200

75

2500

600

1.7

1.7

R

S series NX type

WZCM75RX-34SA

1700

75

4000

830

1.9

4.0

R

S series NX type

WZCM100RX-24S

1200

100

2500

750

1.7

1.7

R

S series NX type

WZCM100RX-24S1

1200

100

4000

625

1.70

2.60

R

S1 series NX type

WZCM150RX-24S

1200

150

2500

1150

1.7

1.7

R

S series NX type

WZCM150RX-24S1

1200

150

4000

935

1.70

2.60

R

S1 series NX type

WZCM150RXL-34SA

1700

150

4000

1500

1.9

4.0

R

S series NX type

WZCM200RXL-24S

1200

200

4000

1500

1.7

1.7

R

S series NX type

WZCM300RXL-24S1

1200

300

4000

1665

1.85

2.7

R

S1 series NX type

Type No.

V_CES(V)

I_C(A)

Isolation Voltage(V)

P_C(W)

V_CE(sat)(V)

V_F(V)

Connection

Series

WZCM35MXA-24S

1200

35

2500

355

1.7

1.7

M

S series NX type

WZCM50MXA-24S

1200

50

2500

425

1.7

1.7

M

S series NX type

WZCM75MXA-24S

1200

75

2500

600

1.7

1.7

M

S series NX type

WZCM75MXA-34SA

1700

75

4000

830

1.9

4.0

M

S series NX type

WZCM100MXA-24S

1200

100

2500

750

1.7

1.7

M

S series NX type
