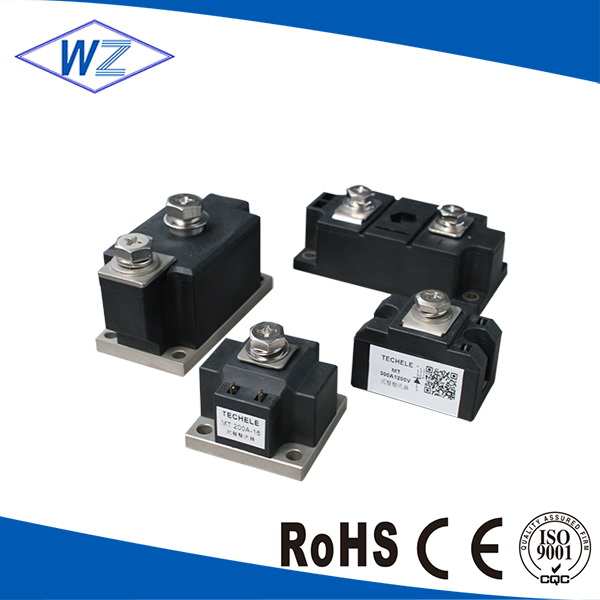

Welder Module
Features
■ Non-insolated, baseboard as common electrode
■ Sealing package according to international standard
■ Full crimping structure, sensitive to temperature and power cycle duty
■ Max. work junction temperature up to 150℃
■ High surge current
■ Low forward voltage drop
Welder Dedicated Modules (MT, MD)
|
Model |
IT(AV) |
VDRMVRRM |
dv/dt |
di/dt |
IDRM IRRM |
IGT |
VGT |
IH |
VTM/ITM |
Tjm |
Outline |
|
|
A |
V |
V/μS |
A/μS |
mA |
mA |
V |
mA |
V/A |
℃ |
|
|
MT200A |
200 |
800~1600 |
800 |
100 |
20 |
150 |
2.5 |
100 |
1.7/600 |
125 |
M21 |
|
MT300A |
300 |
800~1600 |
800 |
100 |
25 |
150 |
2.5 |
100 |
1.7/900 |
125 |
M21 |
|
MT500A |
500 |
800~1600 |
800 |
100 |
30 |
150 |
2.5 |
100 |
1.7/1500 |
125 |
M22 |
|
MD200A |
200 |
800~1600 |
|
|
20 |
|
|
|
1.6/600 |
125 |
M21 |
|
MD300A |
300 |
800~1600 |
|
|
25 |
|
|
|
1.6/900 |
125 |
M21 |
|
MD500A |
500 |
800~1600 |
|
|
30 |
|
|
|
1.6/1500 |
125 |
M22 |
