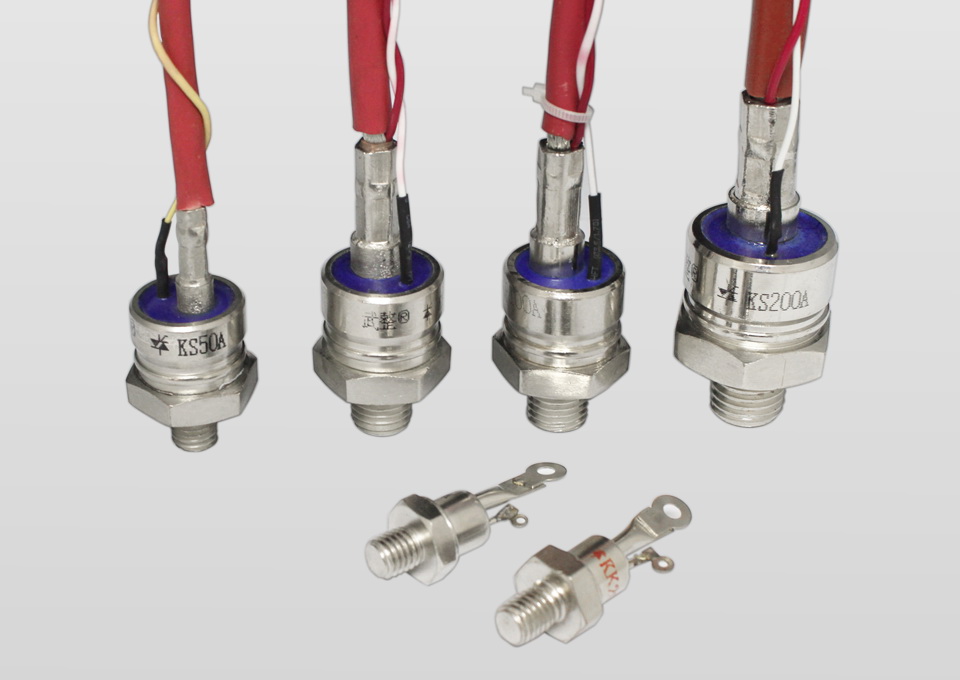

Phase Control Thyristor (Stud Version)
Features：
Stud cathode and stud anode version
High current rating
Excellent dynamic characteristics
Superior surge capabilities
Wide current range
Inch/Metric Sizes available
Vacuum welding under the protection of hydrogen
Application:
Motor controls
AC switches and thermal control
Converters
Power supply
Machine tool controls
Welders
Lighting dimming
|
Model |
IT（AV） |
IF(AV) |
VTM |
VRRM |
IRRM |
IGT |
VGT |
IH |
dv/dt |
di/dt |
Tj |
Rjc |
Outline |
Heatsink |
|
|
A |
A |
V |
V |
mA |
mA |
V |
mA |
V/µs |
A/µs |
℃ |
℃/W |
|
|
|
KP5A |
5 |
8 |
≤2.2 |
200~2000 |
≤8.0 |
5~45 |
≤2.5 |
5~45 |
≥500 |
/ |
-40~+250
|
≤3.0 |
S1 |
SL5A |
|
KP10A |
10 |
16 |
≤2.2 |
200~2000 |
≤8.0 |
5~45 |
≤2.5 |
5~45 |
≥500 |
/ |
≤2.5 |
S2 |
SL10A |
|
|
KP20A |
20 |
32 |
≤2.2 |
200~2000 |
≤8.0 |
5~45 |
≤2.5 |
5~45 |
≥500 |
/ |
≤1.0 |
S3/S4 |
SL20A |
|
|
KP30A |
30 |
48 |
≤2.2 |
200~2000 |
≤10 |
5~50 |
≤2.5 |
5~50 |
≥800 |
≥100 |
≤0.5 |
S5 |
SL30A |
|
|
KP50A |
50 |
80 |
≤2.4 |
200~2000 |
≤10 |
10-150 |
≤2.5 |
10~150 |
≥800 |
≥100 |
≤0.14 |
S6/S11 |
SL30A |
|
|
KP100A |
100 |
160 |
≤2.4 |
200~2000 |
≤10 |
10-200 |
≤2.5 |
10~200 |
≥800 |
≥100 |
≤0.11 |
S7/S12 |
SL100 |
|
|
KP200A |
200 |
320 |
≤2.6 |
200~2000 |
≤10 |
20-200 |
≤2.5 |
20~200 |
≥800 |
≥100 |
≤0.11 |
S8/S13 |
SL200 |
|
|
KP300A |
300 |
480 |
≤2.6 |
200~2000 |
≤30 |
20-200 |
≤2.5 |
20~200 |
≥800 |
≥100 |
≤0.08 |
S9 |
SL300 |
|
|
KP500A |
500 |
800 |
≤2.6 |
200~3000 |
≤30 |
20-200 |
≤2.5 |
20~200 |
≥800 |
≥100 |
≤0.04 |
S10 |
SL500 |
