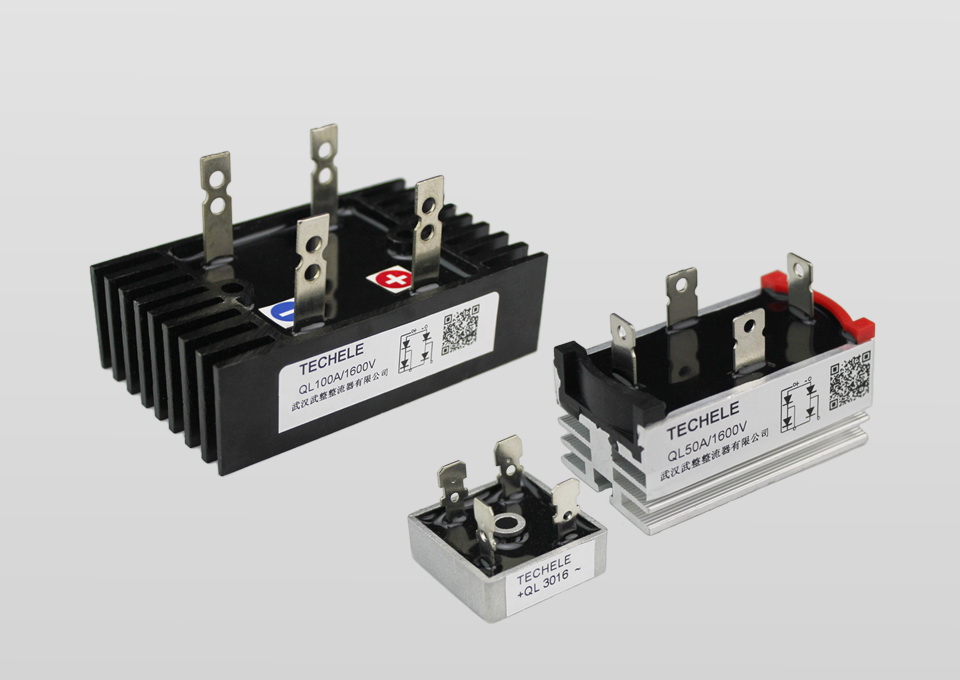

Bridge Rectifiers
Features
■ Current：5-250A
■ Voltage：100-1600V
■ Miniature universal dimensions, welding technique
under the protection of vacuum and hydrogen gas
■ Glass passivated diode chips
■ Excellent force and volume ratio
■ High thermal conductive sealing package
Typical Application
■ Rectifier current
■ Industrial automatic control
■ Digital-controlled machine and remote control system
|
Model |
Id |
IF(AV) |
VRRM |
IRRM |
Viso |
Outline |
|
A |
A |
V |
mA |
V |
||
|
KBPC5A-35A |
5~35 |
2.5~17.5 |
100~1600 |
5 |
2500 |
28×28×22 |
|
QL5A-50A |
5`50 |
2.5~25 |
100~1600 |
5 |
2500 |
32×32×24 |
|
QL40A |
5`50 |
2.5~25 |
100~1600 |
5 |
2500 |
32×60×25 |
|
QL40A |
40 |
20 |
100~1600 |
7 |
2500 |
60×100×55 |
|
QL60A |
60 |
30 |
100~1600 |
7 |
2500 |
60×100×55 |
|
QL100A |
100 |
50 |
100~1600 |
7 |
2500 |
60×100×55 |
|
QL150A |
150 |
75 |
100~1600 |
10 |
2500 |
132×145×75 |
|
QL200A |
200 |
100 |
100~1600 |
10 |
2500 |
132×145×75 |
|
QL250A |
250 |
125 |
100~1600 |
10 |
2500 |
132×145×75 |
|
QL300A |
300 |
150 |
100~1600 |
10 |
2500 |
132×145×75 |
Three Phase Bridge Rectifier Characteristics
Model
Id
IF(AV)
VRRM
IRRM
Viso
Outline
A
A
V
mA
V
SQL10A
10
12
100~1600
7
2500
32×60×25
SQL20A
20
16
100~1600
7
2500
32×60×25
SQL40A
40
14
100~1600
7
2500
60×100×55
SQL50A
50
18
100~1600
7
2500
60×100×55
SQL60A
60
20
100~1600
7
2500
60×100×55
SQL100A
100
34
100~1600
7
2500
60×100×55
SQL150A
150
50
100~1600
10
2500
132×145×75
SQL200A
200
67
100~1600
10
2500
132×145×75
SQL250A
250
84
100~1600
10
2500
132×145×75
SQL300A
300
92
100~1600
10
2500
132×145×75
