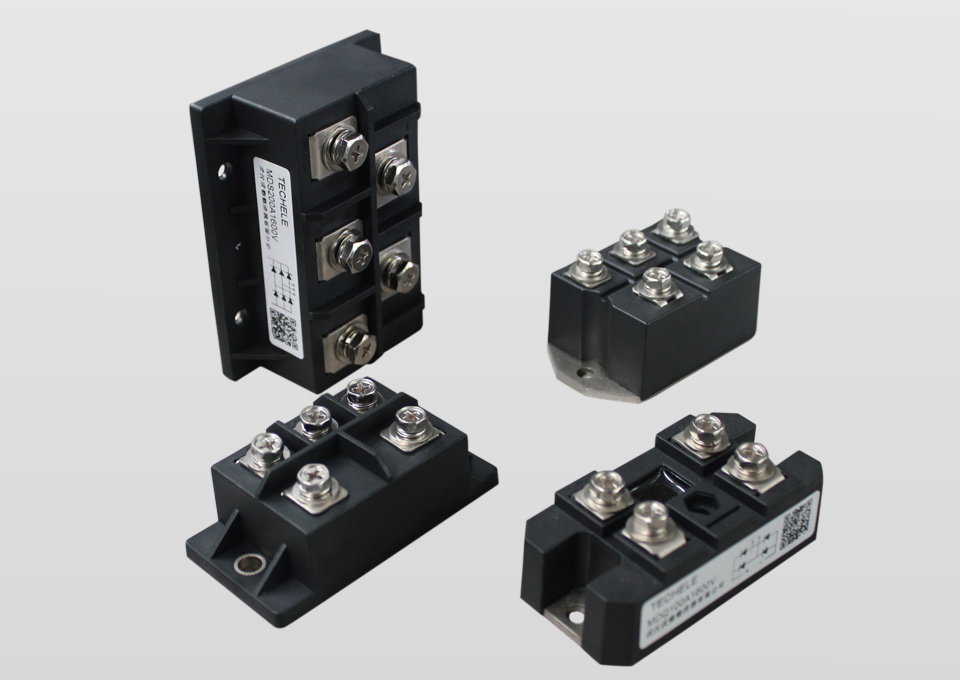

Single Phase Semi-control or Three Phase Full-control Bridge Modules
Features
■ Electrically-isolated chip and baseboard AC 2500V
■ Sealing package according to international standard
■ Welding technique under the protection of vacuum and hydrogen gas
■ Convenient installation, use and maintenance
Compact and lightweight
■ Max. Work junction temperature up to 150 ℃
Typical Applications
■ DC power supply for instrument equipment
■ Input of PWM frequency inverter
■ Rectifying power supply
■ Excitation power supply for DC motor
■ Input of switch power supply and auxiliary current
■ Inverter current
■ DC power supply for current charge
■ Low forward voltage drop
Three Phase Control Bridge/Three Phase Semi-control Bridge
|
Model |
Id |
IF(AV) |
VDRM VRRM |
IDRM IRRM |
VTM/ITM |
IGT |
VGT |
IH |
dv/dt |
di/dt |
Tjm
|
Viso |
Outline |
|
IU |
A |
A |
V |
mA |
V/A |
mA |
V |
mA |
V/μS |
A/μS |
℃ |
V(AC) |
|
|
MT×60 |
60 |
20 |
400~2600 |
8 |
1.45/60 |
100 |
2.5 |
100 |
800 |
50 |
125 |
2500 |
M47 |
|
MT×90 |
90 |
30 |
400~2600 |
15 |
1.45/90 |
100 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
M47 |
|
MT×130 |
130 |
44 |
400~2600 |
25 |
1.50/130 |
150 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
M46 |
|
MT×150 |
150 |
50 |
400~2600 |
25 |
1.50/150 |
180 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
M46 |
|
MT×200 |
200 |
67 |
400~2600 |
30 |
1.50/200 |
180 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
M49 |
|
MT×300 |
300 |
100 |
400~2600 |
40 |
1.50/300 |
180 |
2.5 |
100 |
800 |
100 |
125 |
2500 |
M49 |
|
MT×450 |
450 |
150 |
400~2600 |
40 |
1.50/450 |
200 |
3.0 |
100 |
800 |
100 |
125 |
2500 |
M49 |
Single Phase Control Bridge/Single Phase
Semi-control Bridge
Model
Id
IF(AV)
VDRM VRRM
IDRM IRRM
VTM/ITM
IGT
VGT
IH
dv/dt
di/dt
Tjm
Viso
Outline
IU
A
A
V
mA
V/A
mA
V
mA
V/μS
A/μS
℃
V(AC)
MT×60
60
30
400~2600
8
1.45/90
100
2.5
100
800
50
125
2500
M47
MT×90
90
45
400~2600
15
1.45/135
100
2.5
100
800
100
125
2500
M47
MT×130
130
65
400~2600
25
1.50/195
150
2.5
100
800
100
125
2500
M46
MT×150
150
75
400~2600
25
1.50/225
180
2.5
100
800
100
125
2500
M46
MT×200
200
100
400~2600
30
1.50/300
180
2.5
100
800
100
125
2500
M49
MT×300
300
150
400~2600
40
1.50/450
180
2.5
100
800
100
125
2500
M49
MT×450
450
225
400~2600
40
1.50/675
200
3.0
100
800
100
125
2500
M49
Remark: MTX in the type column represents any type of the MTQ, MFQ, MFQ2, MFQ3, MHF, MTF, MTF2 subject to the above circuit diagram.
