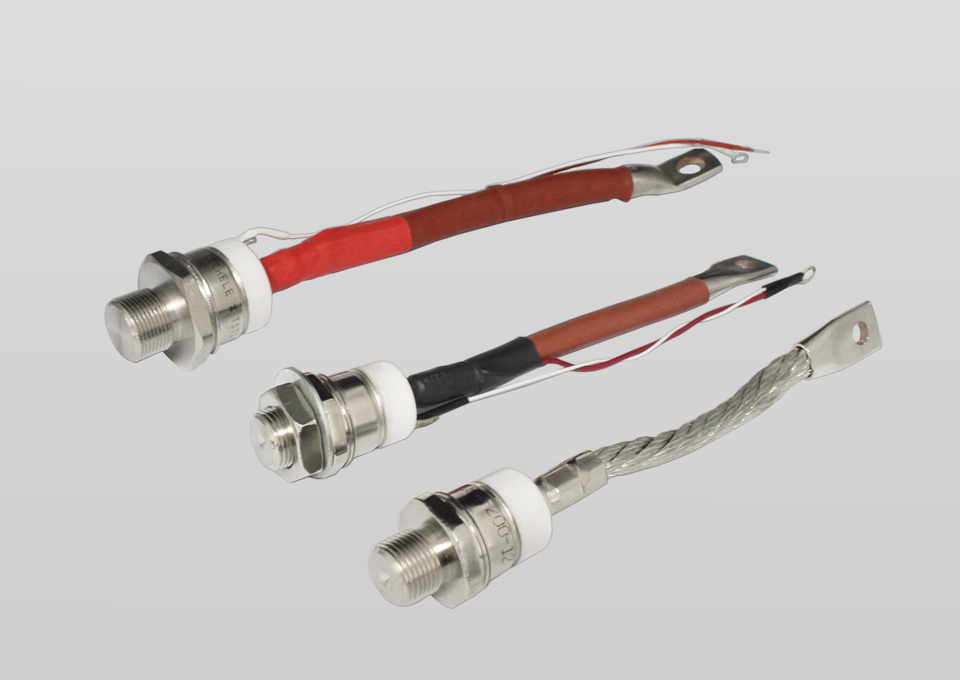

Russian Type Fast Switching Thyristors (Stud Version)

Features:

Hermetic metal case with ceramic/glass insulator

Stud cathode and stud anode version

High surge current capability

Wide current range

Low on-state and switching losses

High dynamic characteristics

Applications:

AC & DC motor control
Various rectifying power supply
Industrial heating control
Light Dimming
Contactless switch
Motor soft start
Static reactive compensation
Welder
Frequency converter
UPS power supply
Battery charge and discharge

Details

Type	V_RRM	I_RRM	IT_(AV)	IT_(RSM)	IT_(SM)	V_TM/I_TM	d_i/d_t	d_v/d_t	V_GT	I_GT	I_H	T_j	R_jc	T_q	M²	Wt	Outline
Type			Tc55℃		10ms	25℃											Outline
	V	mA	A	A	kA	V/A	A/μS	V/μS	V	mA	mA	℃	℃/W	μS	N/m	Kg
TB212-10	400-1400	10	10	16	0.15	2.2/31	200	100-1000	2.0	100	5-50	-40 ~ +125	1.50	12.5, 20, 25, 32	0.9-1.1	0.006	RST1
TB222-16	400-1400	12	16	25	0.30	2.2/50	200	100-1000	2.0	120	5-50		0.90	12.5, 20, 25, 32	1.5-1.7	0.015	RST2
TB222-20	400-1400	12	20	31	0.35	2.2/62	200	100-1000	2.0	120	5-50		0.80	12.5, 20, 25, 32	1.5-1.7	0.015	RST2
TB232-25	400-1400	15	25	39	0.50	2.2/78	200	100-1000	2.5	170	5-100		0.82	12.5, 20, 25, 32	5.0-8.2	0.023	RST3
TB232-32	400-1400	15	32	50	0.60	2.2/99	200	100-1000	2.5	170	5-100		0.62	12.5, 20, 25, 32	5.0-6.2	0.023	RST3
TB232-40	400-1400	15	40	62	0.75	2.2/125	200	100-1000	2.5	170	5-100		0.50	12.5, 20, 25, 32	5.0-6.2	0.023	RST3
TB242-50	400-1400	20	50	78	1.00	2.2/157	200	100-1000	3.0	200	5-100		0.40	12.5, 20, 25, 32	9.0-1.1	0.050	RST4
TB242-63	400-1400	20	63	98	1.10	2.2/198	200	100-1000	3.0	200	5-100		0.30	12.5, 20, 25, 32	9.0-1.1	0.050	RST4
TB151-80	500-1600	20	80	126	1.6	2.2/250	500	500-1000	3.0	250	5-200		0.25	20, 25, 32, 40	10-20	0.165	RST5
TB151-100	500-1600	20	100	157	2.0	1.8/314	500	500-1000	2.5	250	5-200		0.25	20, 25, 32, 40	10-20	0.165	RST5
TB161-125	500-1600	25	125	198	3.5	2.2/390	500	500-1000	2.5	250	5-200		0.15	20, 25, 32, 40	20-30	0.250	RST6
TB161-160	500-1600	25	160	250	4.0	1.8/500	500	500-1000	2.5	250	5-200		0.15	20, 25, 32, 40	20-30	0.250	RST6
TB171-200	500-1600	35	200	314	6.0	2.2/630	500	500-1000	3.5	250	5-200		0.10	20, 25, 32, 40	25-36	0.440	RST7
TB171-250	500-1600	35	250	302	8.0	1.8/785	500	500-1000	3.5	250	5-200		0.10	20, 25, 32, 40	25-35	0.440	RST7
TB171-320	500-1600	35	320	390	8.0	2.2/900	500	500-1000	3.5	250	5-200		0.10	20, 25, 32, 40	25-35	0.440	RST7
