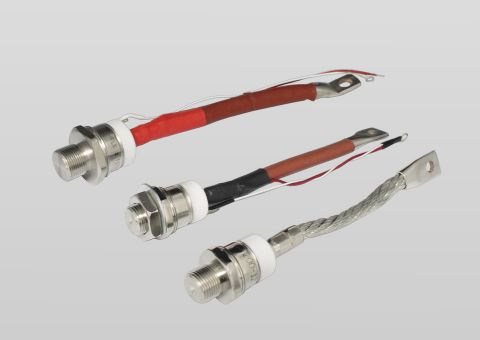

Russian Type Phase Control Thyristors (Stud Version)

Features

High surge current capability

Stud cathode and stud version

Wide current range

Inch device version available

Typical Applications

Battery charges

Conerters

Power supplies

Machine tool controls

Welder

Motor controls

Lighting circuits

Details

Type	V_RRM	I_RRM	IT_(AV)	IT_(RSM)	IT_(SM)	V_TM/I_TM	d_i/d_t	d_v/d_t	V_GT	I_GT	I_H	T_j	R_jc	T_q	M²	Wt	Outline
Type			Tc55℃		10ms	25℃											Outline
	V	mA	A	A	kA	V/A	A/μS	V/μS	V	mA	mA	℃	℃/W	μS	N/m	Kg
T212-10	100-1300	3	10	15.7	0.15	1.93/31	125	50-500	3.0	40	5-50	-40 ~ +125	1.80	63	0.9-1.1	0.006	RST1
T212-16	100-1300	3	15	25.2	0.24	1.80/50	125	50-500	3.0	40	5-50		1.50	63	0.9-1.1	0.006	RST1
T222-20	100-1300	3.5	20	31.4	0.30	1.75/63	125	50-500	3.0	60	5-50		0.90	63	1.4-1.8	0.015	RST2
T222-25	100-1300	3.5	25	39.2	0.35	1.75/78	125	50-500	3.0	60	5-50		0.80	63	1.4-1.8	0.015	RST2
T232-25	1200-1600	9	25	30.2	0.33	2.20/78	125	50-500	3.5	100	5-100		0.80	160	5.0-6.2	0.023	RST3
T232-40	100-1300	5	40	62.8	0.75	1.75/125	125	50-500	4.0	100	5-100		0.62	63	5.0-6.2	0.023	RST3
T232-50	100-1300	5	50	70.5	0.80	1.75/157	125	50-500	4.0	100	5-100		0.50	63	5.0-6.2	0.023	RST3
T242-50	1200-1600	15	50	78.5	0.85	2.10/157	125	50-500	3.5	120	5-100		0.40	160	9.0-11	0.050	RST4
T242-63	100-1300	7	63	90.9	1.30	1.65/108	125	50-500	4.0	150	5-100		0.40	63	9.0-11	0.050	RST4
T242-80	100-1300	7	80	125.8	1.50	1.63/250	125	50-500	4.0	150	5-100		0.30	63	9.0-11	0.050	RST4
T151-100	300-1600	15	100	160	2.0	1.80/314	160	200-1000	3.5	200	5-200		0.30	160	10-20	0.165	RST5
T151-125	300-1600	15	125	200	2.5	1.75/392	125	200-1000	3.5	200	5-200		0.15	160	20-30	0.165	RST5
T161-160	300-1800	15	160	260	4.0	1.70/502	125	200-1000	3.5	200	5-200		0.15	160	20-30	0.250	RST6
T161-200	300-1800	15	200	315	5.0	1.80/628	160	200-1000	3.5	200	5-200		0.13	250	20-30	0.250	RST6
T161-250	300-1600	30	250	390	5.0	1.85/780	125	200-1000	3.5	200	5-200		0.10	160	20-30	0.250	RST6
T171-250	300-1800	30	250	393	6.0	1.75/785	125	200-1000	3.5	200	5-200		0.10	160	25-35	0.440	RST7
T171-320	300-1800	30	320	500	8.5	1.60/100S	320	200-1000	3.5	200	5-200		0.85	160	25-35	0.440	RST7
