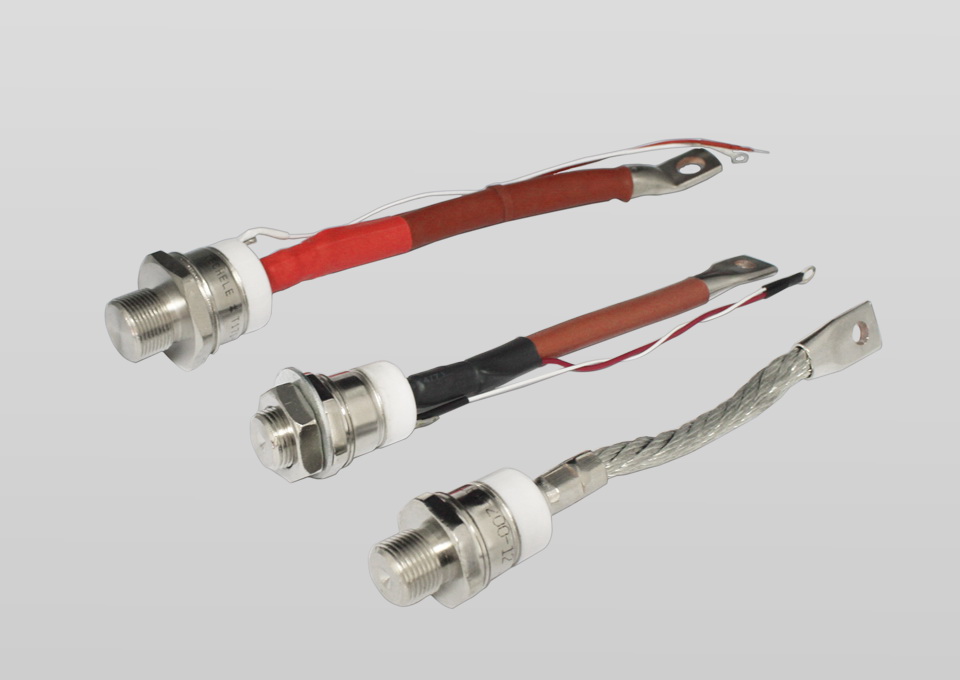

High frequency Thyristors(Stud Version)
Features
All diffused technic
Low switching loss
Superhigh frequency performance, suitable for range Hz 2.5KHz-10KHz
Disc type ceramic casing encapsulation
Typical Application
Inverter
Welder
Chopper
Induction heating
Various compulsive current converters
|
Model |
VDRMVRRM |
IT(AV) |
tq |
ITSM |
dv/dt |
di/dt |
IDRMIRRM |
IGT |
VGT |
IH |
VTM/ITM |
RTH（j-hs） |
Tjm |
M2 |
Outline / |
Heatsink |
|
|
THS55℃ |
100℃ |
10ms |
|
|
|
25℃ |
|
|
|
||||||
|
V |
A |
µs |
KA |
V/µs |
A/µs |
mA |
mA |
V |
mA |
V/A |
℃/W |
℃ |
KN |
/ |
||
|
KG20A |
800-1600 |
20 |
10-16 |
/ |
200 |
200 |
15 |
30-200 |
0.8-3.0 |
10-150 |
3/60 |
0.095 |
115 |
/ |
S3/S4 |
SL20A |
|
KG30A |
800-1600 |
30 |
10-16 |
/ |
200 |
200 |
20 |
30-200 |
0.8-3.0 |
10-150 |
3/90 |
0.095 |
115 |
/ |
S6/S11 |
SL20A |
|
KG50A |
800-1600 |
50 |
10-16 |
/ |
200 |
200 |
20 |
30-200 |
0.8-3.0 |
10-150 |
3/150 |
0.075 |
115 |
/ |
S6/S11 |
SL30A |
