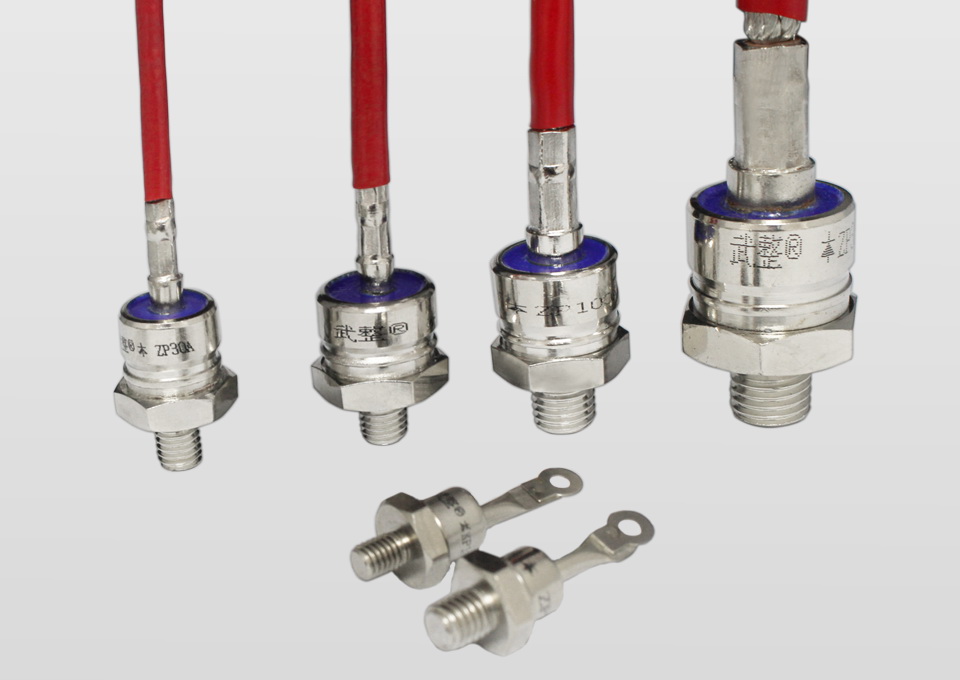

Fast Recovery Diode(Stud Version)
Features：
Hermetic metal case with ceramic/glass insulator
Stud cathode and stud anode version
Wide current range
High surge current capability
High dynamic characteristics
Low on-state Voltage drop and switching loss
Application：
Big power transformer
Battery charges
Converters
Power supplies
Welder
Lighting Circuits
Motor controls
Machine tool controls
|
Model |
VRRM |
IF（AV）
|
Qrr
|
IFSM |
trr
|
IRRM |
VFM/IFM |
RTH（j-hs） |
Tjm |
Outline
|
Heatsink |
|
|
THS55℃ |
|
10ms |
100℃ |
|
25℃ |
|
|
|||
|
V |
A |
µc |
KA |
µs |
mA |
V/A |
℃/W |
℃ |
|||
|
ZK20A |
200-2000 |
20 |
30 |
0.2 |
2 |
10 |
2.2/60 |
0.15 |
150 |
S3/S4 stud |
SL20A |
|
ZK50A |
200-2000 |
50 |
50 |
0.9 |
2 |
10 |
2.2/150 |
0.12 |
150 |
S6/S11 stud |
SL30A |
|
ZK100A |
200-2000 |
100 |
50 |
1.4 |
2 |
15 |
2.2/300 |
0.1 |
150 |
S7/S12 stud |
SL17 |
