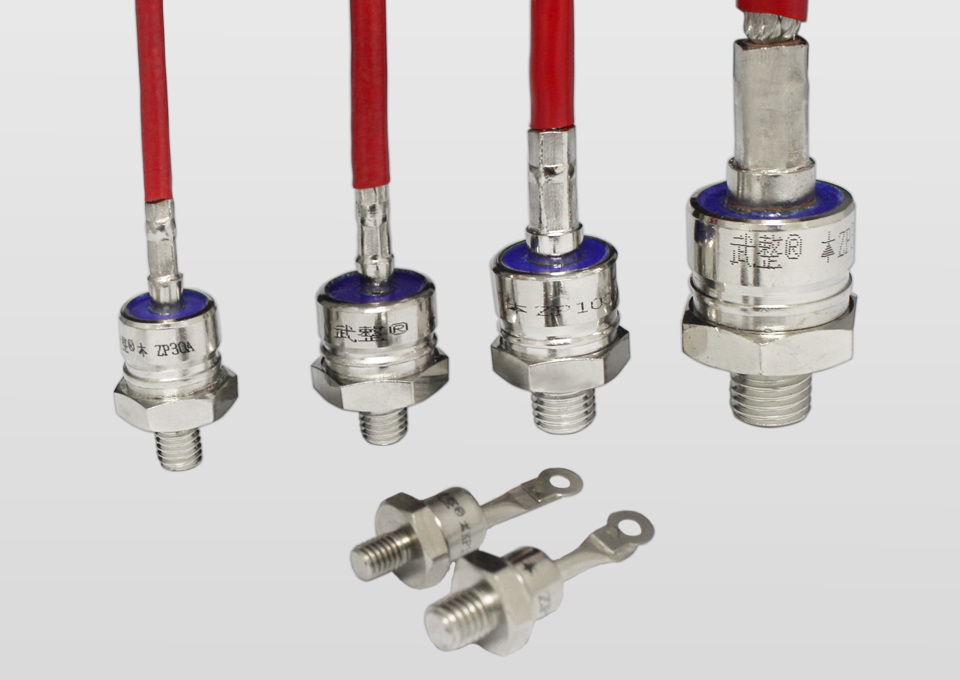

Rectifier Diodes (Stud Version)
Features
IF(AV)=5-500A
VRRM=100-5000V
Metal stud structure
Hermetic ceramic-metal stud structure
Conform to national standard JB/T8949.2-1999
Capacity of supporting high surge current
Stud cathode and stud anode version
Typical Applications
AC/DC converters
DC power supplies
Machine tool controls
|
Model |
IF(AV) |
IFRMS |
VTM |
VRRM |
IRRM |
Tj |
Rjc |
Outline |
Heatsink |
|
|
A |
A |
V |
V |
mA |
℃ |
℃/W |
|
|
|
ZP5A |
5 |
7.9 |
≤1.6 |
200~2000 |
≤2 |
-40~+250 |
≤4.0 |
S1 |
SL5A |
|
ZP10A |
10 |
16 |
≤1.6 |
200~2000 |
≤2 |
≤2.5 |
S2 |
SL10A |
|
|
ZP20A |
20 |
31 |
≤1.6 |
200~2000 |
≤6 |
≤1.4 |
S3/S4 |
SL20A |
|
|
ZP30A |
30 |
47 |
≤1.6 |
200~2000 |
≤6 |
≤1.0 |
S5 |
SL30A |
|
|
ZP50A |
50 |
79 |
≤1.6 |
200~2000 |
≤12 |
≤0.6 |
S6/S11 |
SL30A |
|
|
ZP100A |
100 |
160 |
≤1.8 |
200~2000 |
≤12 |
≤0.3 |
S7/S12 |
SL17 |
|
|
ZP200A |
200 |
310 |
≤1.8 |
200~3000 |
≤12 |
≤0.2 |
S8/S13 |
SL18 |
|
|
ZP300A |
300 |
470 |
≤1.8 |
200~3000 |
≤15 |
≤0.11 |
S9 |
SL18 19 |
|
|
ZP500A |
500 |
630 |
≤1.8 |
200~5000 |
≤15 |
|
≤0.68 |
S10 |
SL20 |
