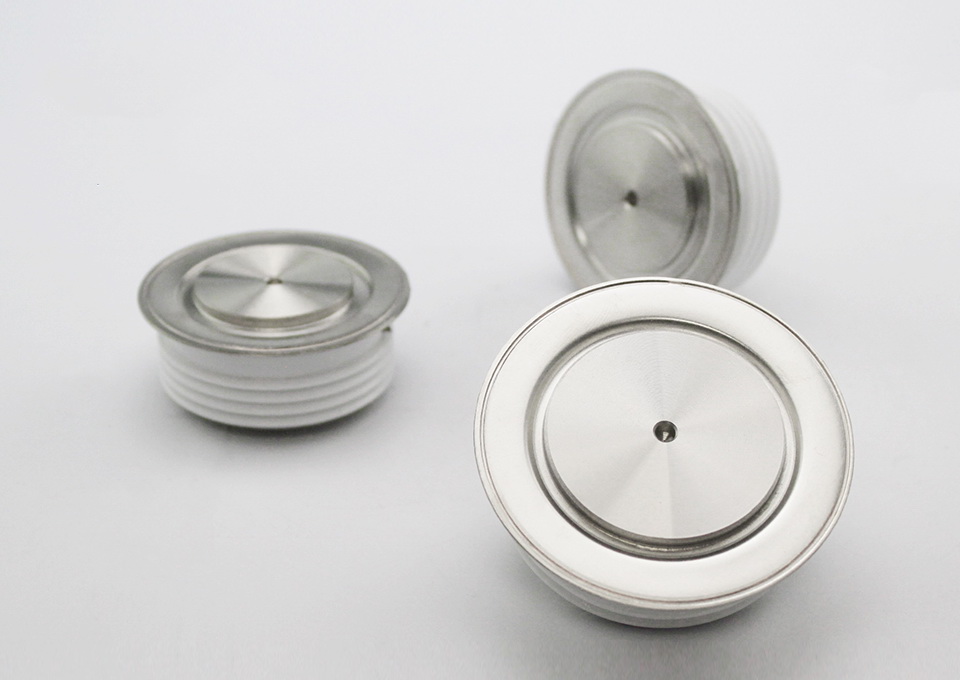

Russian Type Fast Switching Thyristors (Capsule Version)

Features:

Center amplifying gate

Double-side cooling

High surge current loading capacity

Low switching loss

Shorter turn-off time

Excellent dynamic characteristics


Application:

Inverters

Choppers

Induction Heating

Pulse electrical power supplies

Various compulsive converter



Details

Type

VRRM

IRRM

IT(AV)

IT(RSM)

IT(SM)

VTM/ITM

di/dt

dv/dt

VGT

IGT

IH

Tj

Rjc

Tq

M2

Wt

Outline

Tc55

Tc70

10ms

25

25

V

mA

A

A

kA

V/A

A/μS

V/μS

V

mA

mA

/W

μS

KN

kg

TB323-400

300-1400

40

400

628

6.5

2.7/1250

500

500-1000

3.5

300

≤200

-40

~

+125

0.035

12.5,16,32,40

10

0.10

C30

TB333-500

300-1400

40

500

785

7.5

2.2/1570

500

500-1000

3.5

300

≤200

0.035

16,20,25,32,40

10

0.18

TB343-500

500-1000

50

500

785

9.0

2.6/1570

500

500-1000

3.5

300

≤200

0.028

25,2,40

15

0.16

C31

TB143-630

500-1400

50

630

990

10.5

2.1/2000

500

500-1000

3.5

300

≤300

0.028

25,32,40,50

15

0.16

TB153-630

600-1400

100

630

990

1.5

2.4/2000

630

1000-1600

3.5

400

≤300

0.021

20,25,32,40,50

24

0.55

C32

TB453-800

600-1400

100

800

1250

15.0

2.3/2500

630

1000-1600

3.5

400

≤300

0.021

25,32,40,50,63

24

0.55

TB143-500

1400-2400

70

500

800

9.0

2.5/1570

500

500-1000

2.5

300

≤200

0.035

25,32,40,50,63

15

0.24

C31

TB553-800

1400-2400

120

800

1250

17.0

2.8/2500

630

500-1000

2.5

400

≤400

0.021

25,32,40,50,63

24

0.55

C34

TB453-1000

600-1400

100

1000

1600

16.0

2.5/3140

630

1000-1600

3.5

400

≤400

0.021

40,50,63,

24

0.55

TB273-2000

1400-2400

120

2000

3200

40.0

1.85/6280

1000

500-1000

5.0

400

≤400

0.011

40,50,63

45

1.20

RC8
