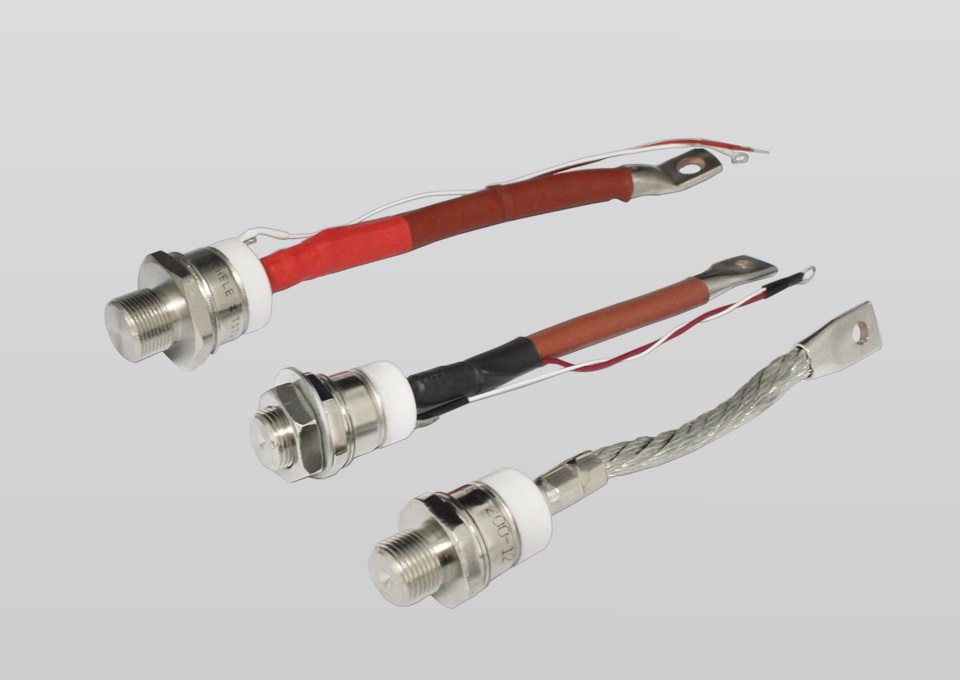

Russian Tyoe Rectifier Diodes(Stud Verstion)

Features

High surge current capability

Stud cathode and stud version

Wide current range

Inch device version available



Typical Applications

Battery charges

Conerters

Power supplies

Machine tool controls

Welder

Motor controls

Lighting circuits




产品详细信息

Type

VRRM

IRRM

IF(AV)

IF(RSM)

IF(SM)

VFM/IFM

Tj

Rjc

M2

Wt

Outline

Tc55

10ms

25

V

mA

A

A

kA

V/A

/W

N/m

Kg

D212-10(X)

100-1200

3

10

15

0.25

1.35/31

-40

~

+150

2.700

0.9-1.1

0.006

RSD1

D212-16(X)

100-1200

3

16

25

0.27

1.35/50

2.000

0.9-1.1

0.006

RSD1

D212-25(X)

100-1200

3

25

39

0.34

1.35/78

1.250

0.9-1.1

0.006

RSD1

D222-32(X)

100-1200

5

32

50

0.46

1.35/100

1.000

1.4-1.8

0.015

RSD2

D222-40(X)

100-1200

5

40

62

0.55

1.35/125

0.800

1.4-1.8

0.015

RSD2

D232-50(X)

100-1600

6

50

76

1.20

1.35/157

0.600

5.0-6.2

0.027

RSD3

D232-63(X)

100-1600

6

63

96

1.40

1.35/198

0.500

5.0-6.2

0.027

RSD3

D232-80(X)

100-1600

5

80

125

1.50

1.35/250

0.400

5.0-6.2

0.027

RSD3

D141-100(X)

100-1600

20

100

180

2.20

1.35/314

0.400

6-10

0.090

RSD4

D151-125(X)

100-1600

20

125

195

3.00

1.35/392

0.300

10-20

0.165

RSD5

D151-160(X)

100-1600

20

160

300

4.50

1.35/502

0.240

10-20

0.165

RSD5

D161-200(X)

100-1800

40

200

400

5.50

1.35/602

0.150

20-30

0.250

RSD6

D161-250(X)

100-1800

40

250

480

6.40

1.35/785

0.140

20-30

0.250

RSD6

D161-320(X)

100-1800

40

320

520

7.50

1.35/1005

0.130

20-30

0.250

RSD6

D171-400(X)

100-2400

50

400

725

14.25

1.40/1256

0.085

20-30

0.465

RSD7

D171-500(X)

100-2400

50

500

760

14.0

1.45/1500

0.080

25-35

0.465

RSD7
